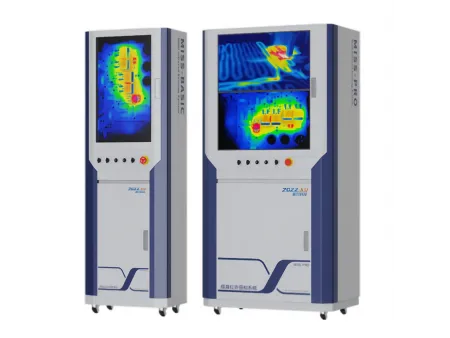

MISS Mold Infrared Sensing System
The mold infrared sensing system (miss) uses infrared thermal imaging cameras to monitor and record mold temperatures at key points in real time during the die casting cycle. It analyzes and processes temperature data to detect whether the die casting process is operating normally, enabling production traceability. In the die casting field, precise control of mold temperature plays a decisive role in product quality, production efficiency, and mold service life.
| Model | | |
| Number of infrared cameras | 2 | 4/6/8 |
| Display | 27-inch monitor ×1pc | 27-inch monitor ×2pcs |
| Applicable die-casting machine | Die casting machine with capacities 2500T or less | Die casting machine with capacities above 2500T |
| Infrared camera brand | InfiRay/Guide Sensmart | InfiRay/Guide Sensmart |
| Infrared camera resolution | 300,000 pixels | 300,000 pixels |
| Temperature measurement range | -20°C ~ 550°C | -20°C ~ 550°C |
| Temperature measurement accuracy | ±2% | ±2% |
| Temperature measurement trigger mode | External trigger or IO signal | External trigger or IO signal |
| Protection level of infrared camera | IP65 | IP65 |
| Cooling method of infrared camera | Forced air cooling | Forced air cooling |
| External power supply | 220V-50Hz | 220V-50Hz |
- Unmanned Online Automatic Monitoring
Temperature measurement is triggered automatically based on signals from external equipment (such as die casting machines).
- Customizable Temperature Measurement Areas
Free configuration of measurement zones, supporting multiple shapes and unlimited quantity.
- Configurable Thresholds
Standard temperatures and alarm limits can be set for each zone.
- Automatic Mold Position Tracking
Ensures stable and accurate temperature measurement.
- Comprehensive Data Recording
Operating data fully recorded, with storage for at least six months.
- Automatic lens contamination detection.
- Convenient Historical Data Analysis
Exportable tables and curves.
- Upgradeable System
Can be upgraded to integrate with temperature control systems for automatic stabilization of mold temperature.

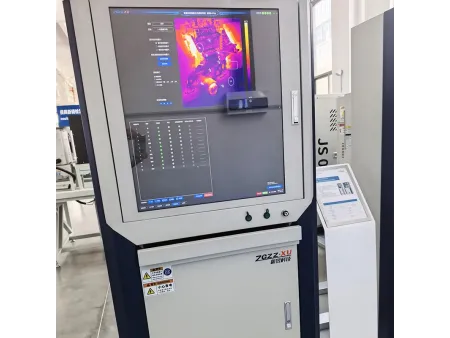

Displays real-time images and temperatures from all cameras.
Displays images before spraying, after spraying, and the differences between them.
