Utility Tractor, 220-240HP
Request a Quote
YTO-LX2204/ELX2404
Features
- ELX series of tractors particularly perform well in farming multitasks with large traction force;
- The air-cooled 6-cylindered turbocharged diesel engine provides great horsepower while reduces oil consumption and saves energy;
- Multiple gears provide wide speed range to fit various needs of farm chores;
- The hydrostatic steering unit offers easy and flexible operation;
- The wet disc brake system provides safe and reliable immediate stopping action;
- The electro-hydraulic PTO and the differential lock enable easy and convenient operation with one single action of pressing a button;
- Carraro’s front axle is reliable and durable with longer service life;
- The enclosed cab keeps drivers comfortable with a wide vision and a climate control system consisting of ventilators, heating and cooling devices.

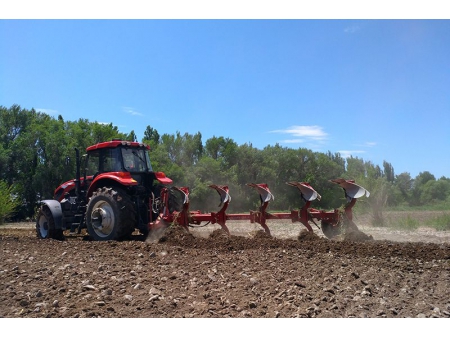

- Ploughing

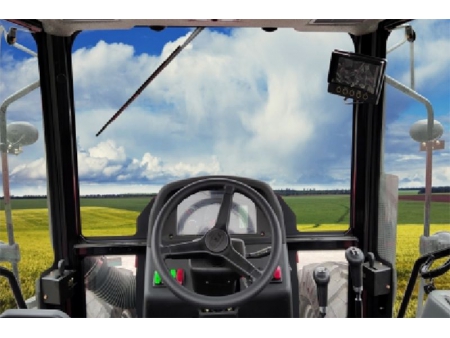

- Wide view
- Suspension seat
- Lift cylinder
Specifications
| Model | LX2204* | ELX2404 |
| Engine type | Air-cooled 6-cylinder turbocharged diesel engine | |
| Rated Engine HP (kW) | 161 (219) | 177 (240) |
| Engine speed (rpm) | 2200 | |
| Clutch | single-action | |
| Gears | 12F/4R (Option 24F/8R) | |
| Gear shift mode | Mechanical | |
| Speed range (km/h) | 2.00-36.69 | |
| Brake | Wet, disc | |
| Rear PTO (rpm) | 540/1000 | |
| Lift capacity (pivot point) (kN) | ≥75 | |
| Hydraulic multiplier (set) | 3 | |
| Dimensions (L*W*H) (mm) | 5430*2750*3130 | |
| Wheel base (mm) | 2928 | |
| Ground clearance (mm) | 420 | |
| Wheel track (F/R) (mm) | 1552-2252/1700-2288 | |
| Min. turning radius (m) | 7±0.3 | |
| Tyre (F/R) | 16.9-28/20.8-38 | |
Note: * Indicates EAC certificate
