Utility Tractor, 130-140HP

Utility Tractor, 130-140HP
Request a Quote

YTO-NLX1304/NLX1404

Features
  • The series of tractors perform well in farming chores and transportation with its large traction force;
  • The naturally aspirated 6-cylindered diesel engine delivers high horsepower while consuming less fuel;
  • 12F/4R gears provide a wide speed range to suit various needs;
  • With the heat dissipation system in transmissions, tractors can easily handle demanding chores;
  • The hydrostatic steering unit enables easy and flexible operation;
  • The wet disc brake system reduces operator effort and saves labor;
  • The independent PTO enables tractors to plow, sow, fertilize and do other chores;
  • The enclosed cab provides operators a wide view and a comfortable experience with an air conditioner (optional);
  • Gear shift synchronizers, soil compaction equipment and a lifter are optional accessories;
  • Optional 1.4m wheelbase tractors can be used for plowing, transportation, intertillage, drug delivery and fertilization.

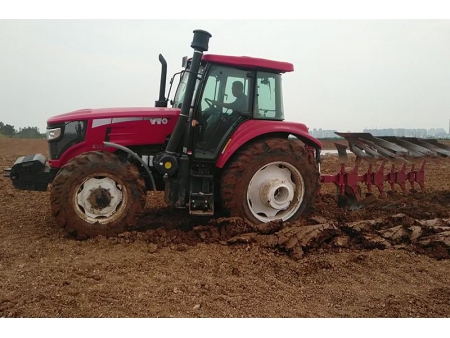

  • Ploughing

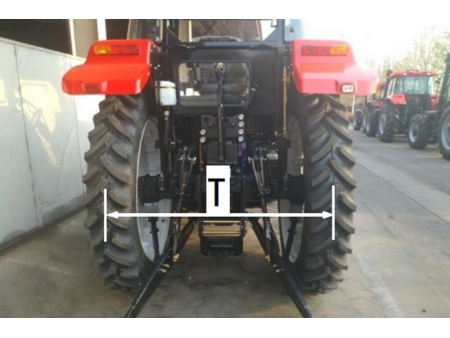

  • T=1.4m
  • Suspension seat, engineering plastic-made upholstery
  • Multifunctional dashboard
Specifications
Model
NLX1304
NLX1404*
Engine type Naturally aspirated 6-cylinder diesel engine
Rated engine HP (kW) 95.6 (130) 103 (140)
Engine speed (rpm) 2300
Clutch Independent, double action
Gears 12F/4R (Option: 24F/8R)
Speed range (km/h) 2.2-29.6
Brake Wet, disc
Rear PTO (rpm) 540/1000
Lift capacity (pivot point) (kN) ≥47
Hydraulic multiplier (set) 2 or 3
Dimensions (L*W*H) (mm) 5050*2380*3100
Wheelbase (mm) 2688.5
Ground clearance (mm) 470
Wheel track (F/R) (mm) 1672-2003/ 1662-2262 1822-2153/1662-2262
Min. turning radius (m) 7±0.3
Tyre (F/R) 14.9-26/18.4-38
Min. operating mass (kg) 5200 5250

Note: * Indicates EAC certificate and the model is X1304
