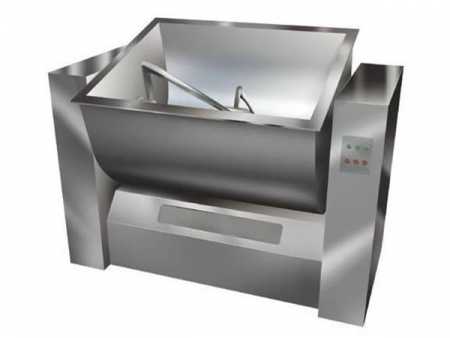

U Trough Mixer

U Trough Mixer
Request a Quote

U trough mixer is a horizontal shaft mixer suitable for blending of powders or light pastes in pharmaceutical applications.

Technical Parameters
  • Mixer type: U trough, single spiral blade
  • Work capacity: 200L
  • Mixing blade rotation speed: 24rpm
  • Tilting angle of trough: 105 degree
  • Tilting speed of trough: 26deg per minute
  • Dimension: 1480×630×1240mm
  • Weight: 850kg
  • Optional
    Mixing motor: Y100L2-4 3KW 1420rpm
    Discharging motor: A1-7134 0.55KW 1420rpm
Features
  • Robust structure, mixing blade and all parts in contact with materials are made of high grade stainless steel, in compliance with the GMP requirements;
  • Worm gear drive features low noise level, sufficient lubricant for optimal lubrication;
  • Material discharging is operated by motor, greatly reducing labor intensity, the mixing time can be controlled manually or automatically according to customer preferences;
  • Protective cover is made of stainless steel, providing superior look while making the cleaning process easier;
