Rear Drive Axle Assembly HQ068B1 Series
Request a Quote
Your Motion
Features
Delivers strong load capacity with a compact, portable design, ensuring reliable and consistent performance in daily operation.
Applications
Suitable for a wide range of indoor and outdoor electric vehicles, including powered mobility scooters, children’s electric ATVs, and kids’ electric go-karts.
Technical Specifications
| Model No. | HQ068B1 |

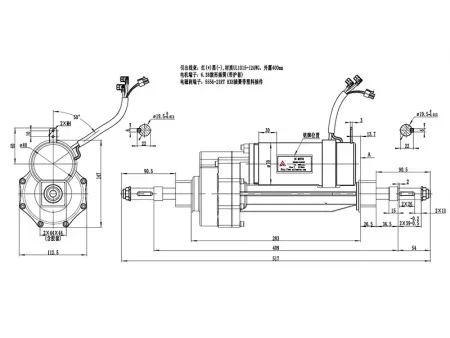

| L1 Size (mm) | 517 |
| L2 Size (mm) | 409 |
| Braking Mode | EM Brake |
| Matched Gear Ratio | 18:1 |
| Matched Motor | ZD068B1/PMDC Brushed Motor |
| Rated Voltage (V) | 24 |
| Rated Power (W) | 350 |
| Rated Torque (N.m) | 1.08 |
| Rated Current (A) | ≤20.5 |
| No-load Current (A) | ≤2 |
| No-load Revolution (RPM) | 3900 |
| Rated Revolution (RPM) | 3100 |
| Max. Torque by gearbox reduction (N.m) | 19.1 |
| Rated Efficiency (%) | ≥72 |
| Working Cycle (min.) | S2-40 |
| Insulation Class | F |
| Protection Level | IP44 |
| Remark | The size of L1 and L2 can be customized per your special requirements. |
