KW180R Water Well Drilling Rig
KAISHAN KW180R water well drilling rig is characterized by light weight, small size, flexible movement, convenient transportation and maintenance, and long service life. This geothermal drilling rig is mainly suitable for drilling of agricultural and construction wells.
Our KW180R geothermal drilling rig is also optional in an air compressor or a mud pump, and a rubber or steel track.
KW180R drilling rig drilled water wells in Peru in 2022
Brief Parameters
Drilling Depth:180m
Drilling Diameter:140-254mm
Diesel Engine Power:55Kw
1.A 55kW Quanchai turbocharged engine is equipped to provide strong power.
2.Patented composite arm offers a long stroke and the dual cylinder lifting device provides a large lifting power of 10T.
3.The main boom of this water well drilling rig is installed with a stopper to protect the cylinder.
4.Professional and durable base of the well driller comes with a strong bearing capacity and its wide chain plate causes little damage to the road.
5.The design of parallel transmission with independent oil pump comes with a strong power and reasonable distribution. The unique hydraulic system offers simple maintenance and low cost.
6.The hydraulic motor is equipped with a reducer for durability and long service life.
7.Dust removal device effectively reduces the dust pollution and makes the KW180R water well drilling rig suitable for cavity and tunnel applications.

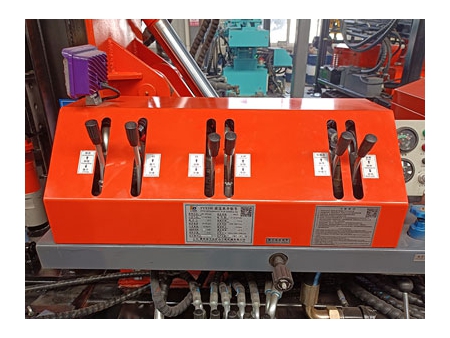

8.Fast distribution valve provides a three-gear speed regulation and a maximum speed of 150-160 rpm, enabling the drilling of water and air.

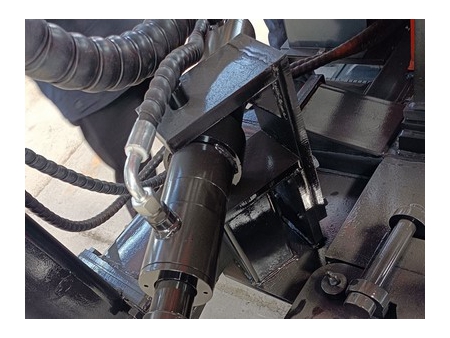

9.Each hydraulic hose is covered with a soft management unit to prolong its service life.
10.KW180R water well drilling rig is driven by a diesel engine and its walking, turning, propelling, lifting, leg and discharge rod are hydraulic controlled.
11.This crawler mounted well drill is convenient to move and transport. Its rubber track chassis allows it to travel freely in the city and courtyards without damaging the ground.
12.Strong hydraulic leg allows adjusting the height of the rig quickly and stably for easy loading and transposition.
13.The unique wellhead provides the drilling rig with a certain drilling center to ensure a vertical drilling and the position accuracy.
14.The mechanical positioning of the carriage and frame improves the stability of this well driller.
15.The pneumatic system is equipped with a custom-made lubricator for lubricating the drill hammer, greatly increasing its service life.
Model of drill rig | KW180R |
Maximum depth of drilling | 180m |
Drilling diameter | Ø140-254mm |
Feed stroke | 3m |
Working pressure | 1.7-2.5MPa |
Air consumption | 15-27m³/min |
Length of rod | 1.5m,2m,3m |
Diameter of rod | Ø76, Ø89, Ø102 |
Lifting power | 10T |
Rotary torque | 4200-5600N.m |
Rotary speed | 40-70r/min |
Supporting power | Quanchai |
Power parameters | 55kW/2200r/min |
Travelling speed | 0-2.5 km/h |
Climbing capacity | 30° |
Weight of complete machine | 5000KG |
Outer dimensions | 3800x1500x2200mm |
Application | Complicated geological conditions: Rock, Mud, Sand etc. |
Drilling method | Top drive hydraulic rotary and propulsion, DTH drilling or mud pump drilling |
DTH hammer | 4", 5", 6", 8" drill hammer or CIR110, 130, 150,170 |
KAISHAN is able to provide different power supply solutions according to your demands. Usually, the water well drilling rigs adopt a screw air compressor, but it can be changed if you require a mud pump. If you are going to purchase our water well drilling rig, please tell us the detailed working conditions and we will provide the optimal solution to your needs. Besides, KAISHAN provides one-stop service, just one click to get everything you need, including drill bits, drill pipe, mud pump and air compressor. Please contact our sales staff for details.
