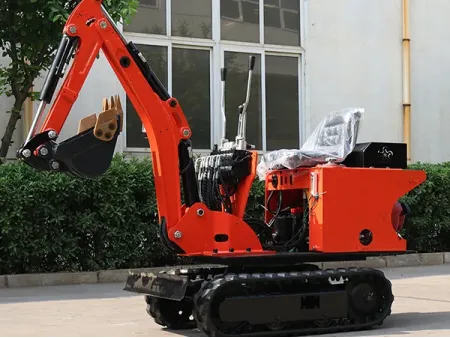

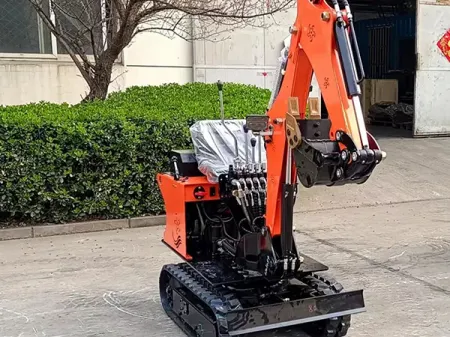

KV08 Mini Crawler Excavator
Request a Quote
Compact excavator with operating weight of 700kg
- Operating weight
700kg - Track width
150mm - Track ground length
805mm - Bucket capacity
0.02m³
Specifications
| Operating weight | 700kg |
| Overall dimensions (L×W×H) | 2200×760×1880mm |
| Track width | 150mm |
| Track ground length | 805mm |
| Ground clearance | 385mm |
| Bucket capacity | 0.02m³ |
| Gradeability | 30° |
| Fuel tank capacity | 5L |
| Hydraulic tank capacity | 13L |
| Hydraulic flow | 18L/min |
| Working pressure | 16MPa |
| Engine | Huapuri 192F |
| Engine power | 12hp |
| EU5 & EPA4 engine options | Briggs & Stratton, Kepu 192 |
| Max. digging height | 2465mm |
| Max. dumping height | 1780mm |
| Max. digging depth | 840mm |
| Max. digging radius | 2500mm |
| Swing radius | 1100mm |
| Configuration | Pump, valve and motor (renowned domestic brands) |
| Track type | Rubber tracks |
| Canopy | Two-leg canopy |
Features
- Available with a Koop 192F diesel engine or Briggs & Stratton gasoline engine
- Easy-to-use dual-lever front control system
- Grease-fitted pins for convenient maintenance
- Widened and thickened bulldozer blade for improved durability
- High-strength hydraulic cylinders fitted with imported seals for better flexibility and longer service life
- Shaped industrial chassis with engineering-grade rubber tracks offers excellent traction and stability across varied terrain conditions
Detail Highlights
- Engine
- Rubber track
- Grease nipple
- Reinforced hydraulic cylinder
- Reinforced dozer blade
- Joystick
