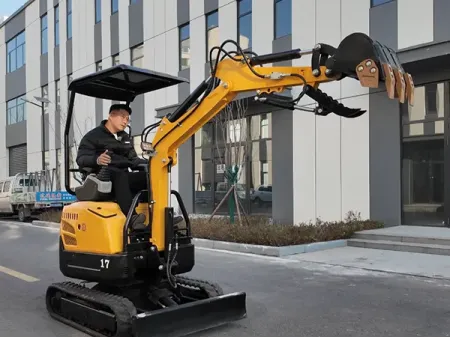

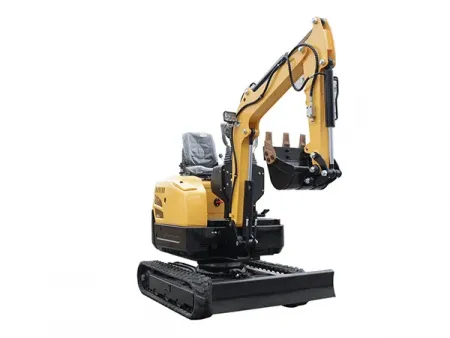

KV13/13PLUS/15 Mini Crawler Excavator
Compact excavator with operating weight of 1000kg
- Bucket capacity
0.025m³ - Chassis width
1100mm - Track length
1030mm - Gradeability
20°
| Model | | | |
| Bucket capacity | 0.025m³ | 0.025m³ | 0.025m³ |
| Chassis width | 1100mm | 1100mm | 1000mm |
| Track length | 1030mm | 1030mm | 926mm |
| Gradeability | 20° | 20° | 20° |
| Chassis ground clearance | 385mm | 385mm | 385mm |
| Track width | 180mm | 180mm | 180mm |
| Fuel tank capacity | 5L | 5L | 7L |
| Overall dimensions (L×W×H) | 2200×1100×2200mm | 2200×1100×2200mm | 2450×1000×2200mm |
| Transport length | 2400mm | 2400mm | 2450mm |
| Hydraulic flow | 18L/min | 18L/min/27L/min | 28L/min |
| Hydraulic tank capacity | 13L | 13L | 13L |
| Working pressure | 16MPa | 16MPa | 16MPa |
| Engine | KOOP 192F diesel engine (Euro 5) | KOOP 192F diesel engine (Euro 5) | KOOP 192F diesel engine (Euro 5) |
| Engine power | 12hp | 12hp | 12hp |
| EPA engine optional | Briggs & Stratton gasoline/13.5hp | Briggs & Stratton gasoline/13.5hp | Kuboto D722 |
| Max. digging height | 2550mm | 2550mm | 2550mm |
| Max. dumping height | 1710mm | 1710mm | 1600mm |
| Max. digging depth | 1740mm | 1740mm | 1650mm |
| Max. digging radius | 3100mm | 3100mm | 2400mm |
| Turning radius | 1635mm | 1635mm | 1550mm |
| Bucket excavating force | 11kN | 11kN | 13.5kN |
| Operating weight | 1000kg | 1100kg | 1000kg |
| Configurations | Valve: Beifang Brand Pump: K-Jun Brand Piston pump Eaton walking motor | Valve: Beifang Brand Pump: K-Jun Brand Piston pump Eaton walking motor | Valve: Beifang Brand Pump: K-Jun Brand Piston pump Eaton walking motor |
Piston pump hydraulic system provides strong power output, effective energy saving, and better heat dissipation for long working hours
Mechanical control
Simple structure and easy maintenance, ideal for users seeking cost efficiency.
Direct linkage between control levers and the hydraulic system ensures immediate response.
Hydraulic pilot control
Lightweight, smooth operation with reduced fatigue during long shifts.
Offers higher precision and softer motion for fine excavation tasks.
Dual swing motors provide smoother and more stable machine movement
Zero-tail design with adjustable tracks
Compact, zero-tail structure enhances maneuverability in confined areas
Adjustable track width makes transitions and narrow-passage movement easier and safer
Imported Eaton travel motor with integrated brake
Fitted with a U.S.-made Eaton travel motor for reliability and consistent power
Built-in braking system ensures stability and safety on slopes
Breaker cut-off valve
Made of wear-resistant cast steel, prevents hydraulic oil leakage
Ensures safe and efficient breaker operation
