5-30L Food and Oil Packaging Machine
Request a Quote
The 5-30L food and oil packaging machine includes a weight-based filling machine, single head capping machine, self-adhesive labeling machine, conveyor belts and oil drum packaging. The oil drum packaging line processes food and oil with both high and low viscosity.
Main performance parameters:
- Filling range: 5-30kg
- Bottle size range: Length: 160mm~360mm, Width: 140mm~260mm, Height: 250mm~500mm
(Min: 140 x 200 x 320 mm, Max: 260 x 290 x 500 mm) - Diameter of bottle opening: ≥Φ40mm
- Power supply: ~ 220 V, 50 Hz
- Total power: 3.5 kW
- Air consumption: 120L/Min
- Measurement accuracy: ± 0.5% (Note: Filling accuracy depends on the viscosity of the material)
- Production capacity: ≤480 bottles/hour
- Bottle feeding direction: From left to right
Features:
- Only three people (one operator, two assistants) are needed to operate this production line.
- In-line self-adhesive labeling machine and single-head capping machine are easy to use.
- Robot palletizing allows for automatic production.
- Weight-based filling machine is highly precise even with large orders or with liquid that foams when poured.

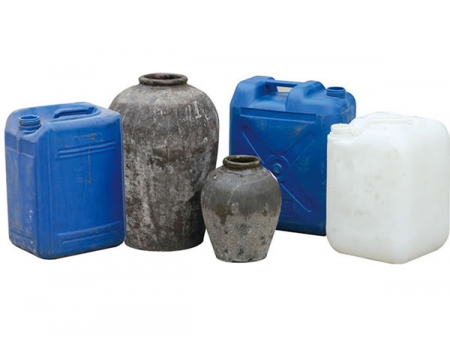

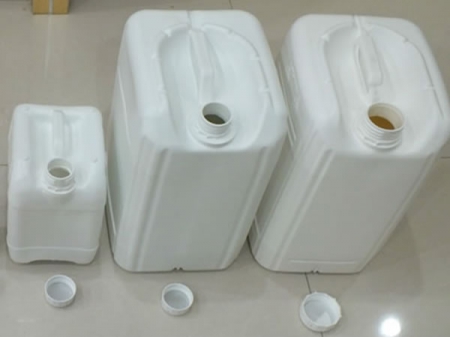

Suitable bottles:
