High Speed Label Rotary Die Cutter
Request a Quote

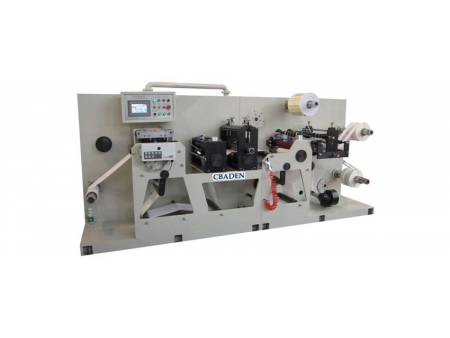

Rotary die-cutting machine for blanks and adhesive labels
This high speed label rotary die cuter is our latest product, which has a lot of improvements:
- Artistic appearance, more reliable operation;
- Advanced rotary die-cutting system, accurate slitting performance;
- Meter counting and automatic stopping, web guiding;
- This die cutting machine can finish work in a single process;
- This high-speed label rotary die cutter is suitable for blank adhesive labels, paper or some other related materials.
| Max. unwinding diameter | 700mm |
| Die cutting maximum winding diameter | 700mm |
| Maximum winding diameter of flip slitting | 220mm |
| Maximum cutting width | 320mm |
| Minimum cutting width | 25mm |
| The host power | 2.2kW |
| Total power of main engine | 3.5kW |
| Main machine die cutting speed | 100mmin |
| Main engine cutting speed | 120mmin |
| Machine weight | 1200kg |
| Overall dimensions | L650xW90xH650mm |
At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
