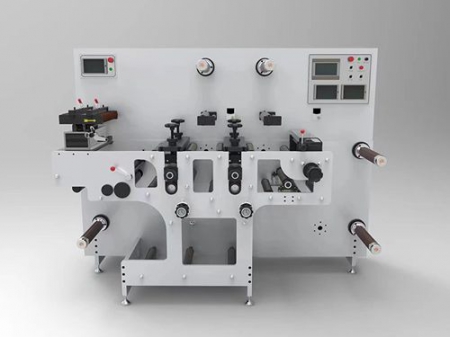

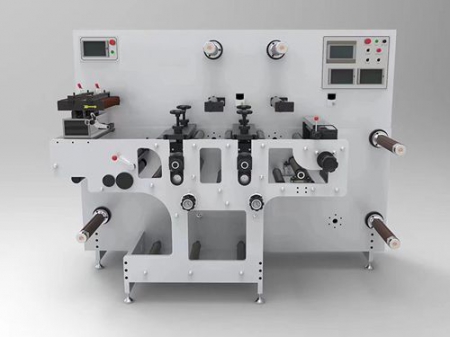

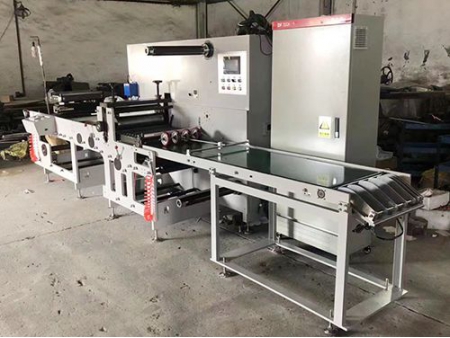

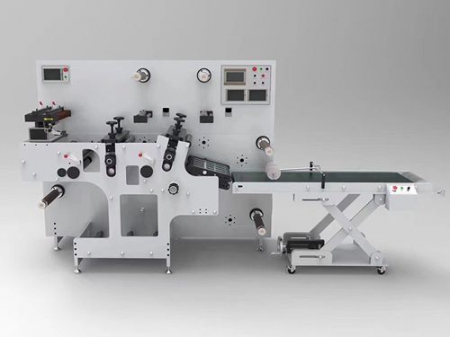

Die-cutting, slitting and rewinding machine

We are excited to introduce our new product, the auto-rotary die cutting and slitting machine, which has a lot of improvements:

  • Seven sets of servo motors, faster operation;
  • Advanced register sensors, accurate rotary die-cutting performance;
  • Meter counting and automatic stopping, cutting-edge USA web guiding system;
  • This die-cutting and slitting machine can finish working in a single process;
Specifications
Model SAHB320 SAHB450
Slitting speed 90m/min 90m/min
Die-cutting speed 70m/min 70m/min
Max web width 320mm 450mm
Max unwinding diameter 600 mm 600 mm
Max rewinding diameter 600 mm 600 mm
Die cutting length 200mm-470mm 200mm-470mm
Machine weight 2000kg 2300kg
Dimensions (L×W×H) 3.5m×1.3m×1.52m 3.5m×1.5m×1.52m
Customized Die Cutting & Slitting Machines
Printing and Packing Related Machinery Manufacturer
With five manufacturing facilities, we are able to manufacture a diverse line of products, including printing machine, die cutting creasing machine, hot stamping machine, plastic bag making machine, paper cutting machine, label slitting machine, and more.

At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
