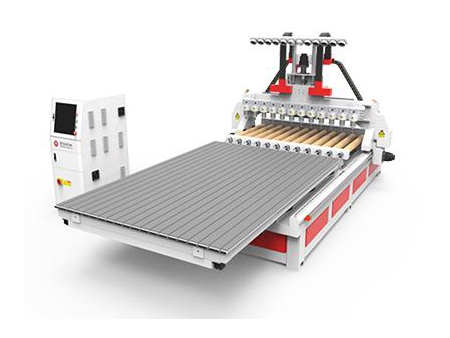

KS2030K8 Series CNC Router/CNC Mill
This CNC router is suitable for 3D carving and is widely used to manufacture wood statues, crafts, furniture legs, gun bodies, handles, stairs, pillars and more. Through precision cutting, drilling and carving, this CNC router effectively improves your processing capacity and productivity.
Solid wood, fiberboard, plastic, foam, resin, etc.

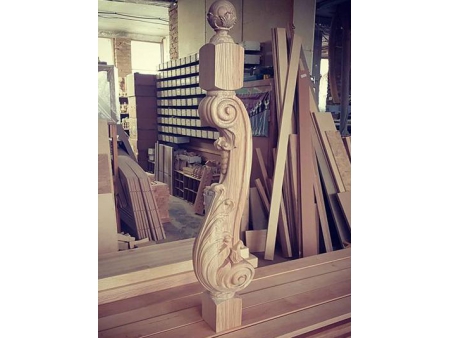

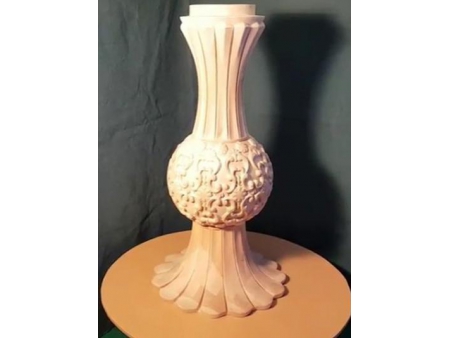

- Furniture industry: manufacturing sofa legs, desks, table legs and more

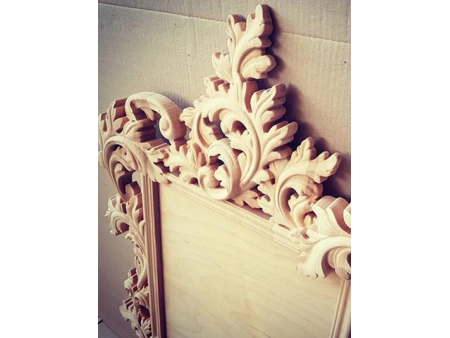

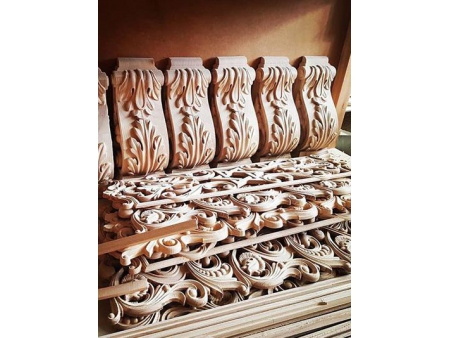

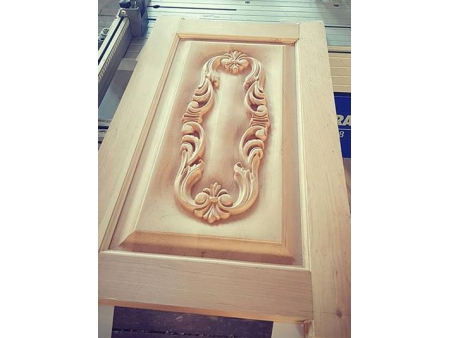

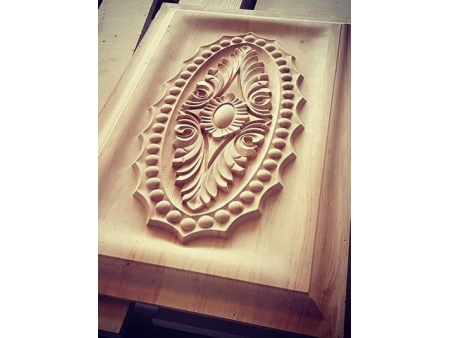

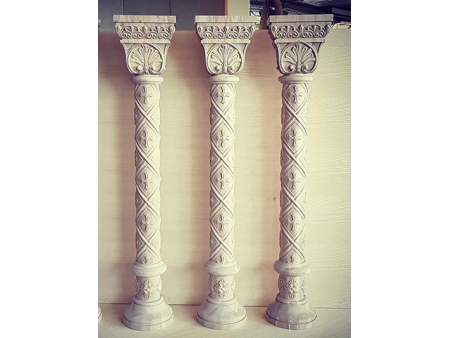

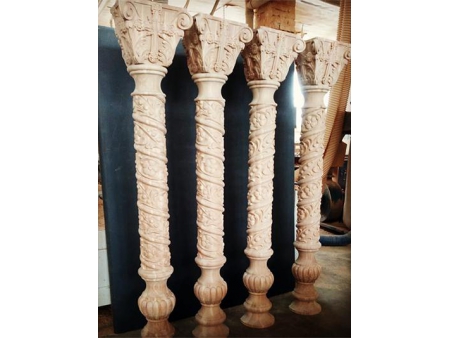

- Decoration industry: Engraving 3D hollow letters, patterns, characters on furniture, walls, pillars, stairs and more

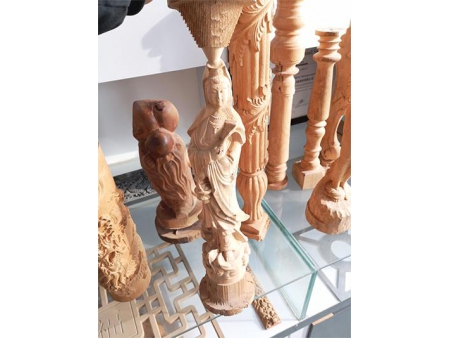

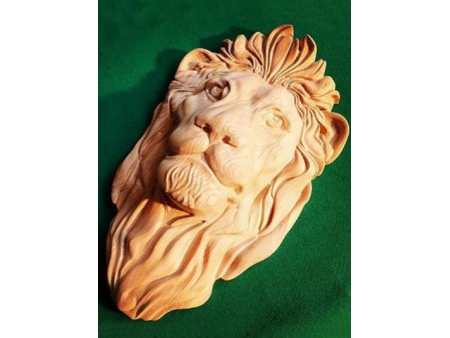

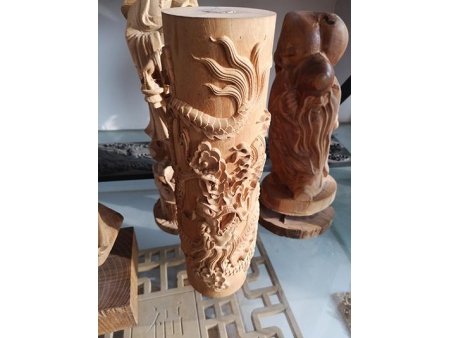

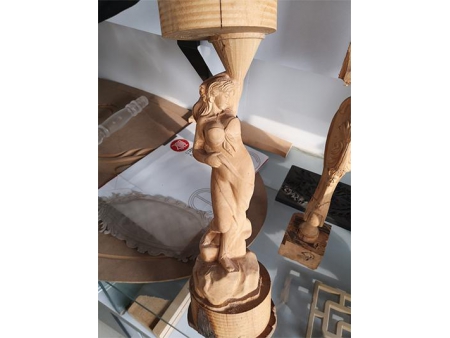

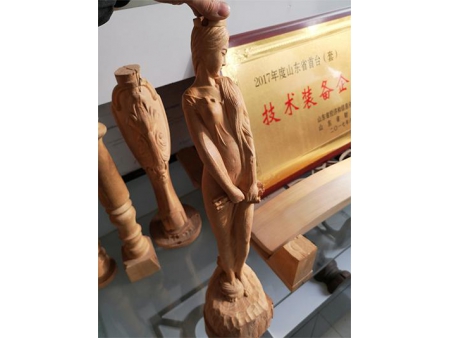

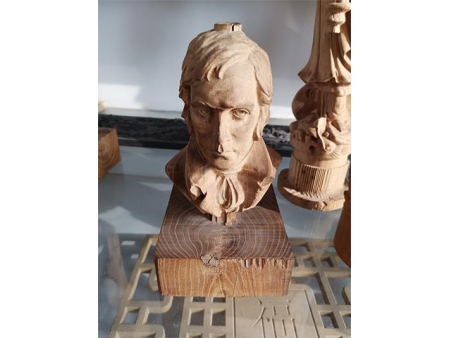

- Sculpture: Making statues, crafts, etc.
- A heavy-duty frame ensures the stability during processing.
- The 2.2kW water cooled electric spindle features a spindle speed of 0-18000r/min. Its 8 to 12 spindles can work simultaneously to improve the process efficiency.
- It is equipped with servo motor made in Taiwan and reducer made by Shimpo. The high torque motor ensures the speed and stability during the process.
- The intelligent control system is easy to operate. Users can easily master it after a short training process.
| Series | KS2030K8 |
| Stroke | 2000*300mm |
| Idle speed | ≥60000mm/min |
| Processing speed | ≥30000mm/min |
| Spindle power | 2.2KW |
| Spindle speed | 18000r/min |
| File format | G-code |
| Working voltage | 380/220 V 3ph (Customizable) |
| Package dimensions | 2280X4000X2000 mm |
| Shipping weight | 2000 Kgs |
- The air-cooled spindles can be replaced with water cooled spindles.
- The number of spindles can be customized according to your requirements.
