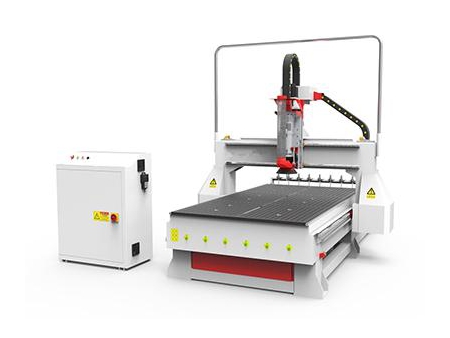

MS1325AC Series CNC Router/CNC Mill

MS1325AC Series CNC Router/CNC Mill
Request a Quote

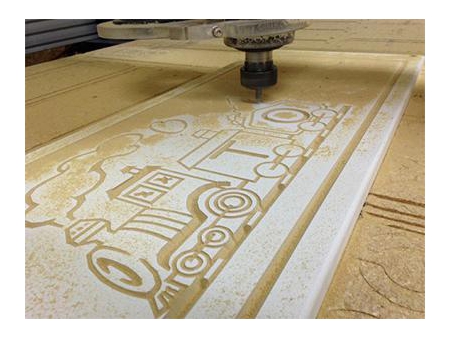

CNC router is designed for high speed processing of flat workpiece. It uses 9KW spindle with automatically tool changer whose speed can be up to 24000r/min. It can finish various processes including carving, cutting, milling, and drilling.

Materials Cut

Soft metal and non-metallic materials including wood, PVC, particle board, fiberboard, insulation board, plywood, polystyrene, acrylic glass, polymethyl methacrylate, etc.

    Applications
    • Furniture industry: for manufacturing panel furniture, office furniture, door, soft case, etc.
    • Woodwoking industry: loudspeaker box, cabinet, sewing machine table, musical instrument, etc.
    • Decoration industry: acrylic, plastic, MDF, polymethyl methacrylate, etc.
    Features

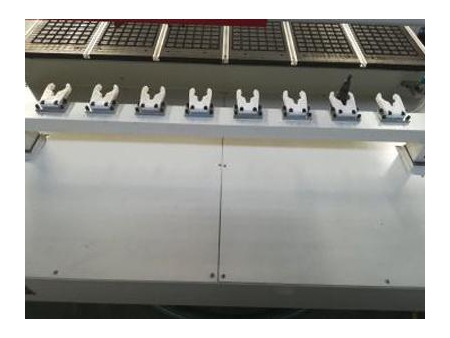

    • The CNC router is equipped with row-type tool changer which can hold 6 to 12 tools (customizable). The tool changing only needs 4 seconds which can effectively improve the work efficiency.

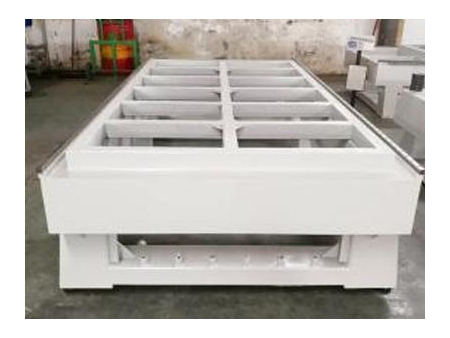

    • Heavy-duty machine body

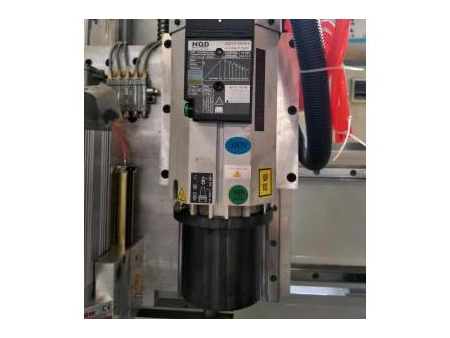

    • Automatic tool change spindle
    • Servo motor and reducer
    • The transmission is equipped with a linear guide rail, precision bevel wheel, and screw rod.
    • NK105G3 operating handle
    • Shaking lubrication system
    • Table
    Parameters
    Model F5-MS1325AC F5-MS1631AC F5-MS2131AC F5-MS2142AC
    Stroke 1300×2500×300mm 1600×3100×300mm 2100×3100×300mm 2100*4200*300mm
    Shank diameter Φ3.175-Φ18
    Weights 1800KG
    Package dimensions 3700x2100x2100mm
    Working voltage AC380V-/220V
    Optional Device
    • 9KW HSD tool change spindle, YASKAWA servo motor, and Syntec control system are all optional.

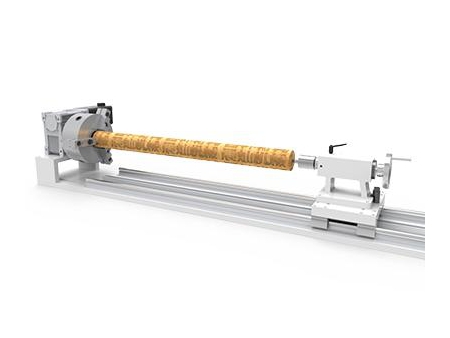

    • Users can request an added rotary axis.
    • Software such as Type3/Artcam/Mastercam/UG is optional.

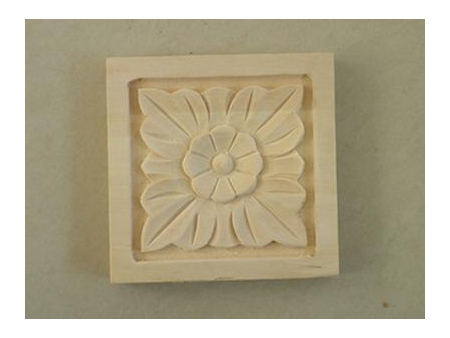

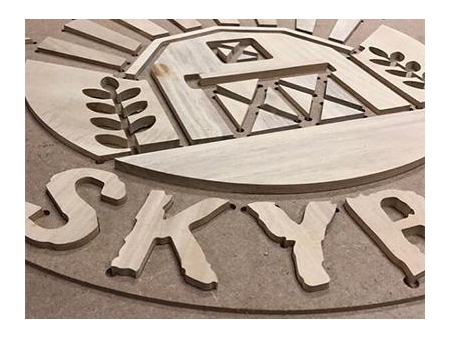

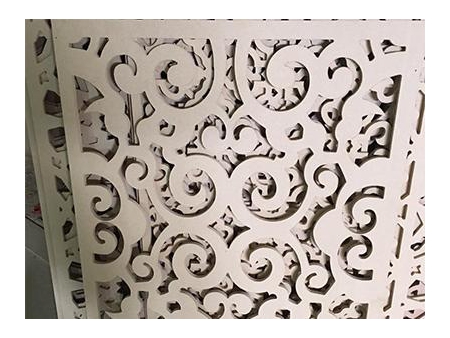

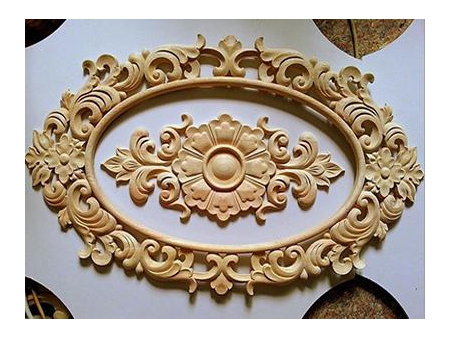

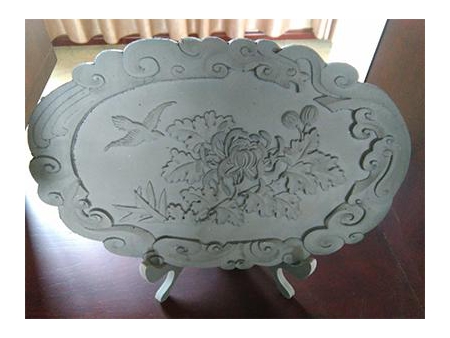

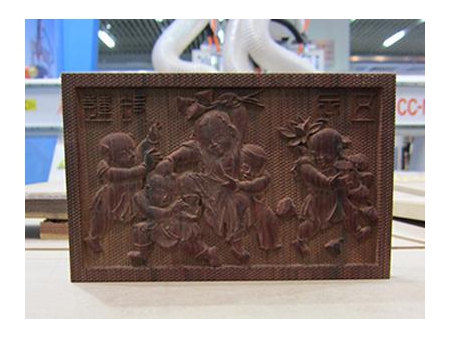

    Gallery
