MS1325AS3 Series CNC Router/CNC Mill
Request a Quote

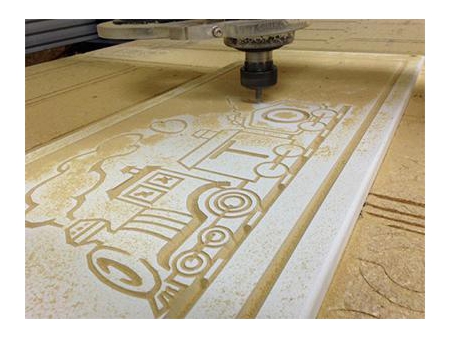

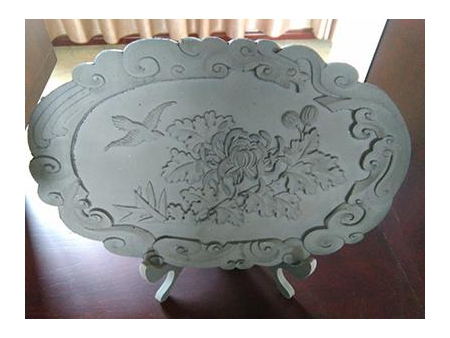

This CNC router is a woodworking CNC milling machine with an automatic row-type tool changer for effectively improving the processing speed and accuracy. It is designed for manufacturing wood products and completes a variety of processes on flat workpieces, including carving, cutting, milling, and drilling.
Materials Cut
Wood, PVC, particle board, fiberboard, plywood, polystyrene, acrylic glass, polymethyl methacrylate and more
Applications

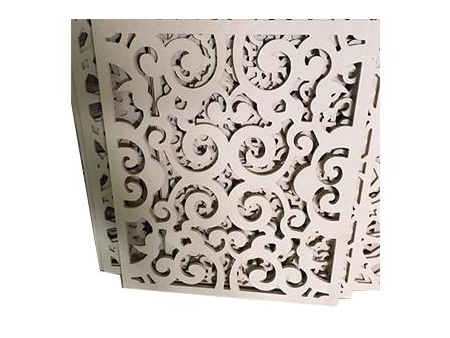

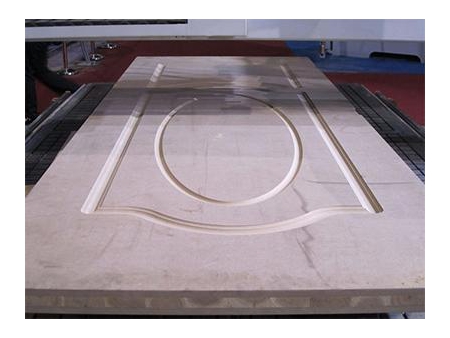

This CNC mill is widely used in furniture industry for manufacturing panel furniture, office furniture, soft case, door, interior finishing and more.
Features

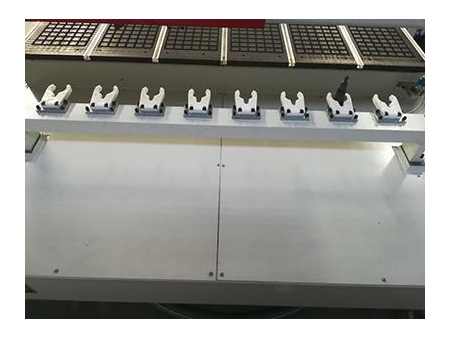

- The CNC router is equipped with row-type tool changer capable of holding 8 to 12 tools (customizable according to customer needs). Tool changing requires only 4 seconds, thereby effectively improving work efficiency.

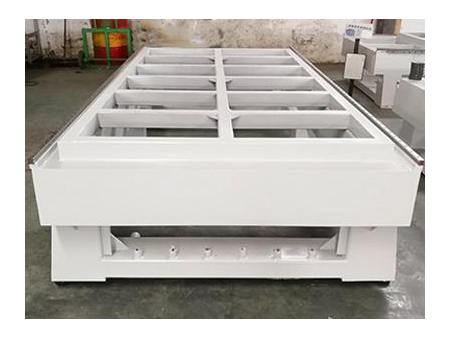

- The machine body is welded using a thick wall squire steel that has undergone a vibration aging treatment. This ensures the long service life.

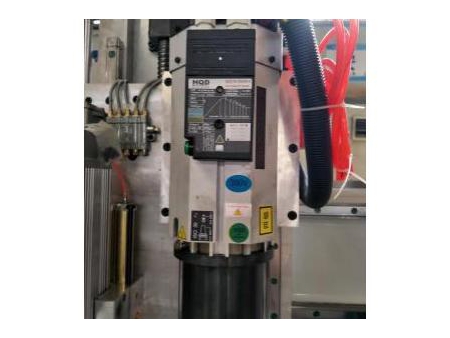

- The 9kW automatic tool change spindle features a spindle speed of 24000rpm/min.

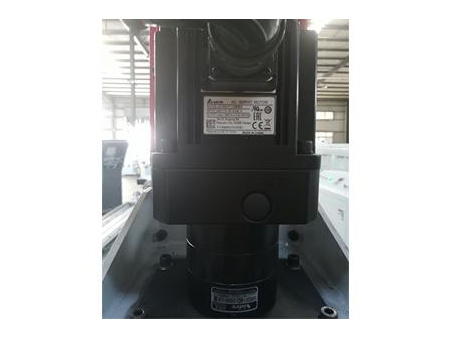

- It is equipped with a servo motor made by Delta and reducer made in Japan, both of which feature a high precision.

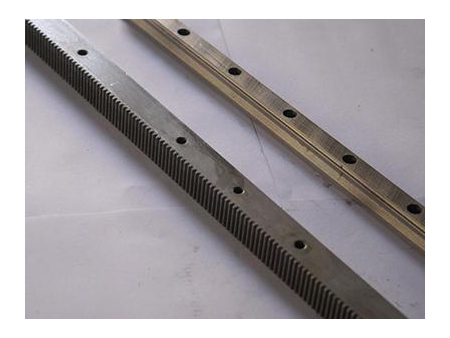

- The transmission is equipped with a linear guide rail, precision bevel wheel, and screw rod, thus ensuring a high speed and high precision.

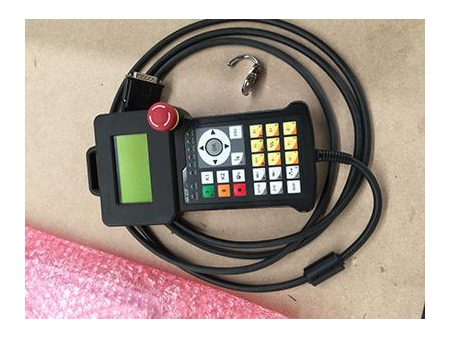

- The NK105G3 operating handle is stable and easy to use.

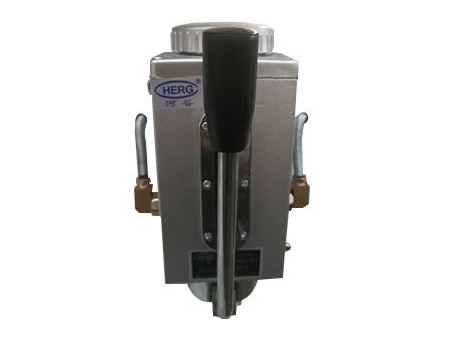

- The shaking lubrication system lubricates the guide rail and rack to ensure the long machine service life.

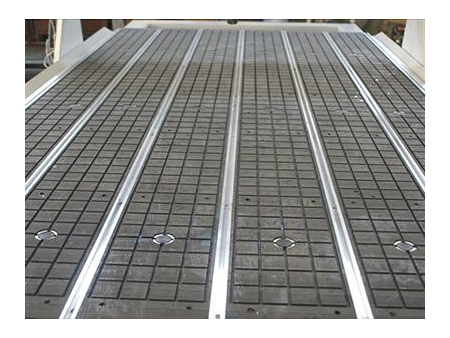

- The vacuum table with a T-slot can fix workpiece of different dimensions partially and firmly. It features a quick load and convenient usage.
Parameters
| Model | F5-MS1325AC | F5-MS1631AC | F5-MS2131AC | F5-MS2142AC |
| Stroke | 1300×2500×300mm | 1600×3100×300mm | 2100×3100×300mm | 2100*4200*300mm |
| Shank diameter | Φ3.175-Φ18 | |||
| Weights | 1800KG | |||
| Package dimensions | 3700x2100x2100mm | |||
| Working voltage | AC380V-/220V | |||
Options

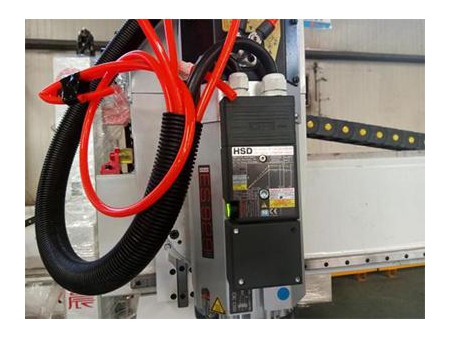

- The HSD 9Kw tool change spindle is optional.
- The YASKAWA servo motor is optional.
- TheSyntec control system is optional.
