UHF Wireless Meeting System
With high flexibility and reliability, our UHF wireless meeting microphone system is an ideal choice for mobile conference systems. It offers simple operation，compact structures. The wireless meeting microphone system can be perfectly integrated into any meeting rooms, without additional wiring. In addition, multiple devices can be used together.

Wireless Meeting System HT-280U

HT-280U

System include 1 receiver and 2 transmitter microphone
Operating frequency: 610.00MHz-659.75MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto

Wireless Meeting System HT-860

HT-860

System include 1 receiver and 4 transmitter microphone
Operating frequency: 610.00MHz-659.75MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit

Wireless Meeting System HT-1188

HT-1188

System include 1 receiver and 2 transmitter microphone
Operating frequency: 610.00MHz-659.75MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit
Audio output: Balance: 0-600mV, unbalance:0-300mV

Wireless Meeting System HT-620

HT-620

System include 1 receiver and 2 transmitter microphone
Operating frequency: 610.00MHz-669.7MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit

Wireless Meeting System HT-640

HT-640

System include 1 receiver and 4 transmitter microphone
Operating frequency: 610.00MHz-669.7MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit

Wireless Meeting System HT-680

HT-680

System include 1 receiver and 8 transmitter microphone
Operating frequency: 525.5MHz-864.7MHz
Frequency response: 40Hz-18KHz
Dynamic range: >105dB
T.H.D:<0.5%
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit
Audio output: Balance: 0-600mV, unbalance:0-300mV

Wireless Meeting System HT-862A

HT-862A

System include 1 receiver and 2 transmitter microphone
Operating frequency: 610.00MHz-669.7MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit

Wireless Meeting System HT-866A

HT-866A

System include 1 receiver and 4 transmitter microphone
Operating frequency: 610.00MHz-669.7MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit

Wireless Meeting System HT-868A

HT-868A

System include 1 receiver and 8 transmitter microphone
Operating frequency: 525.5MHz-864.7MHz
Frequency response: 40Hz-18KHz
Dynamic range: >105dB
T.H.D: <0.5%
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit
Audio output: Balance: 0-600mV, unbalance:0-300mV

Wireless Meeting System HT-962

HT-962

System include 1 receiver and 2 transmitter microphone
Operating frequency: 610.00MHz-669.7MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit

Wireless Meeting System HT-966

HT-966

System include 1 receiver and 4 transmitter microphone
Operating frequency: 610.00MHz-669.7MHz
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit

Wireless Meeting System HT-968

HT-968
HT-WD3
HT-WJ3
HT-W05

System include 1 receiver and 8 transmitter microphone
Operating frequency: 525.5MHz-864.7MHz
Frequency response: 40Hz-18KHz
Dynamic range: >105dB
T.H.D:<0.5%
Adopt CPU control with PLL combined technology
Frequency selection of IR
Frequency stability: <±30PPm
With FM Max frequency adjusting:±45KHz
Pre-warning display for weak battery
Audio frequency response compression and auto electricity level control circuit
Audio output: Balance: 0-600mV, unbalance:0-300mV

UHF Wireless Meeting System HT-820B/HT-840B

HT-820B
HT-840B

Adopt UHF 610-659.75MHz PLL frequency synthesizer technology
Adopt multi-channel high band and intermediate band frequency selective filtering, fully eliminate interference signal
Built-in feedback eliminating technology which can decrease the feedback and noise effectively
Built-in multiple noise detecting circuit and TONE-LOCK system to make sure the system has strong anti-jamming function.
Perfect performance with the best chips and components; adopt SMD original mount design to enhance the product quality and stability.
Operation distance up to 60 meters with the best condition, 40 meters in normal condition.
Frequency and channel are locked to protect anti-jamming function.

Technical Parameters

Carrier Frequency: 610.00MHz-659.75MHz
Modulation: FM
Frequency Response: 60-16KHz
Frequency Stability: 20ppm
Max deviation: /-25 KHz
T.H.D:<1%
RF Output: 30mW
Current Consumption: 100mA
Pressure limit sensitivity: -70〜-98 dBM
Pilot Carrier Frequency: 32 Khz

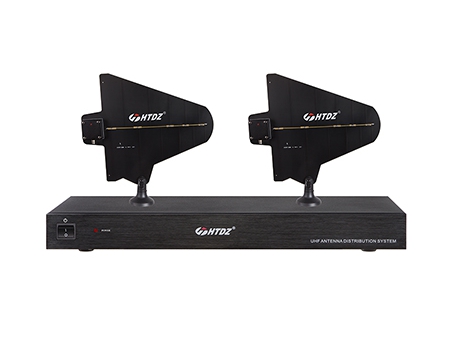

UHF Antenna Divider HT-UK1

HT-UK1

The antenna provides two-in-one style high gain receptivity for the wireless system with UHF 500-900MHz and the receiving band will cover the whole UHF channel. The directive antenna design also provides ideal long range and steady reception for the UHF wireless system
The antenna Distributor is designed for long range reception and transmitting application, such as gymnasium, concert, theater and large performances; or some environment which can be blocked sight and reception, and the antennas can install or remove easily and firmly for convenient portability.
The antenna can be roughly used almost all UHF receivers, also provides 180 degree directed reception among fixed frequency. Compare with the standard antennas addition in the receiver, the antenna distributor promote about 13dB radio frequency signal when the impedance is 50 Ohm.

VHF Wireless Meeting System

HT-820E
HT-840E
HT-820F
HT-840F
HT-812
HT-814

Description	Handheld Mic	Tabletop Mic	Receiver (2 CH)	Receiver (4 CH)
Carrier Frequency	160-270MHz	160-270MHz	160-270MHz	160-270MHz
Modulation	FM	FM	FM	FM
Frequency Response	60-16KHz	60-16KHz	60-16KHz	60-16KHz
Frequency Stability	20ppm	20ppm	20ppm	20ppm
Max deviation	/-25KHz	/-25KHz	/-25KHz	/-25KHz
T.H.D	< 1%	< 1%	< 1%	< 1%
Compander	Y	Y	Y	Y
S/N Ratio	/	/	>90dB	>90dB
RF Output	30mW	10mW	/	/
Current Consumption	100mA	100mA	130mA	220mA
Power Voltage	3V	3V	12V	12V
Power Consumption	/	/	< 3W	< 3W
Pressure limit sensitivity	-70~-98 dBM	-70~-98 dBM	/	/
AF Output	/	/	400mV	400mV
Pilot Carrier Frequency	32KHz	32KHz	/	/
Dimensions	/	/	420x220x44mm	420x220x44mm
N.W	252g	729g	2106g	2272g
