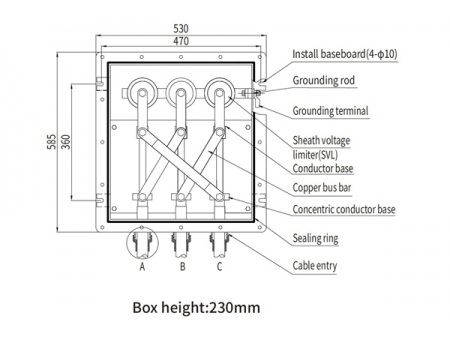

Cross Bonding Link Box
Request a Quote
- Model: WJC
Features
- This link box is used for the cross bonding of the metal sheath of the single-core cable by limiting the surge overvoltage on both sides of the insulation segment of the metal sheath and the insulation joint, controlling the induced voltage of the metal sheath, and lowering (or eliminating) the eddy current on the sheath layer. This can prevent the breakdown of the cable outer sheath and make sure the safe operation of the cable;
- The sheath is made of 304 stainless steel, the interior of which can be filled with resin;
- Small volume, light, easy to install and the sheath protector can be replaced.
Download
Electrical Performance
Test Item | Technical Requirements |
DC voltage withstand test | Neither breakdown nor flashover shall occur at 20kV for 1 min |
Impulse voltage test | Neither breakdown nor flashover shall occur at 10 positive and 10 negative impulse of 40kV (peak value) |
Insulation resistance test between copper bar and housing | Not less than 20MΩ |
Contact resistance test of copper bar | Nor more than 20μΩ |
Main Electrical Performance of SVL (sheath voltage limiter)
Test item | BHQ-7/600 | BHQ-10/600 |
DC 1mA reference voltage | 40kV | 5.8kV |
Rectangular wave capacity | 600A | 600A |
Residual voltage ratio | K≤2 | K≤2 |
Current capacity | 100kA | 100kA |
Rated voltage | 2.8kV | 4kV |
Residual voltage of nominal discharge | ≤7kV | ≤10kV |
Ordering information: (For all HV cable accessories)
- Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
- Welcome to contact our sales manager for any special requirements before placing your order.
