FF-450

Duct damper tube former for shaping rounded air volume control dampers

FF-450

Duct damper tube former for shaping rounded air volume control dampers

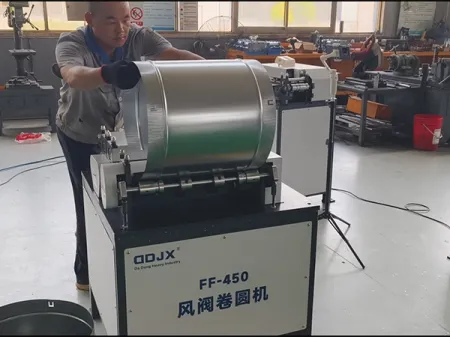

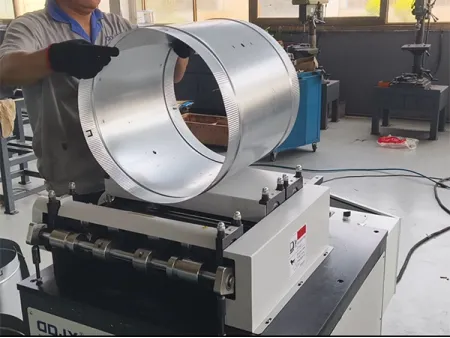

The duct damper rounding machine integrates beading, crimping, and rounding into one process. It is simple to operate, requires minimal skill from the operator, and is easy to master. This air duct machine is used for producing round dampers with a maximum diameter of 450mm and a maximum length of 450mm. The round damper forming machine can be paired with our company's rivet-less riveting machine to complete the duct damper production process.

Specifications

Duct damper diameter	150-450mm
Duct damper length	230-450mm
Thickness range	0.3-0.6mm
Motor power	1.5kW
Machine dimensions	81×88×100cm

Features

One duct damper rounding machine simultaneously completes multiple processes: beading, crimping, and rounding. This eliminates intermediate handling and adjustment, enhancing air duct production efficiency.
Supports processing various specifications: diameters 150-450mm, lengths 230-450mm, and thicknesses 0.3-0.6mm, providing high application flexibility.
The round duct forming machine has a small footprint (81×88×100cm), making it suitable for various workshop layouts and balancing performance with space efficiency.
The 1.5kW motor provides continuous and stable power output, ensuring requirements for long-term, continuous operation are met.
