Metal Deburring and Edge Rounding Machine, DDR Series
Request a Quote
Applications
The metal deburring and edge rounding machine is specially designed for processing your metal coils, including cold-rolled steel, hot-rolled steel, stainless steel, tin-plated steel, and pickled steel. It’s an ideal solution for your business if you handle large-scale metal sheet processing needs, such as cabinet manufacturing, office furniture, environmental protection equipment, electrical cabinets, or operations in the air conditioning and refrigeration industries.
Features

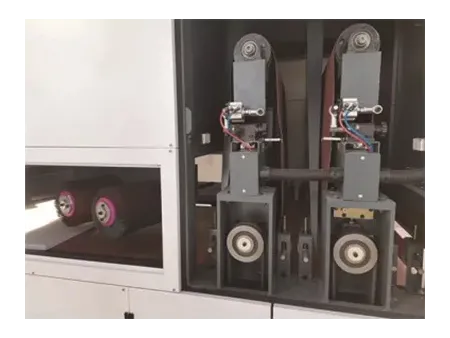

- This metal finishing machine includes a combination of wide sanding belts and rotating brushes for multi-station grinding.

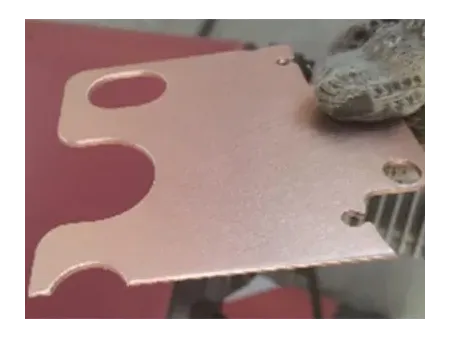

- Designed for single-pass single-side processing, this metal finishing and edge conditioning machine efficiently removes slag and burrs produced during metalworking processes such as laser cutting, blanking, plasma cutting, flame cutting, and stamping.
Parameters
| Model | | |
| Max. working width (mm) | 1000 | 1300 |
| Working thickness (mm) | 1-50 | 1-50 |
| Conveyor speed (m/min) | 0.5-14 | 0.5-14 |
| Sanding belt size (W*L) (mm) | 1020*2000 | 1020*2000 |
| Grinding roller size (diameter*width*hole size) | 300*300*28 | 300*300*35 |
| Total power (kW) | 34 | 57 |
| Machine dimensions (mm) | 3600*1580*2250 | 3800*1880*2300 |
Options:
- Magnetic suction/vacuum suction
- Single sanding belt/double sanding belt
