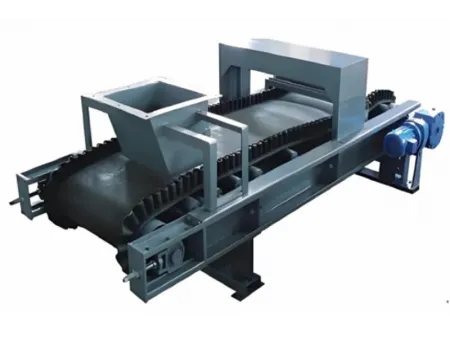

Conveyor belt scale for weighing bulk materials transported by a belt conveyor

Belt weigher systems offer an efficient solution for accurately weighing bulk materials as they move along a conveyor belt. The system consists of a belt conveyor, load cells for weight detection, and a variable frequency drive that ensures precise material flow control. It operates by continuously comparing the actual flow of material with a preset target value. Based on this comparison, the system adjusts the conveyor speed through the variable frequency drive ensuring the required flow rate is maintained. This makes it an excellent tool for industries requiring automated material feeding and weighing control.

Working Principle

Weight detection: Materials passing over the belt are measured using load cells for weight accuracy.
Flow rate adjustment: A controller monitors the material flow, comparing it with the target rate.
Speed control: The controller adjusts the belt speed through the VFD to meet the required feed rate.

Advantages

Simple and convenient to operate, just load the material, start the system, and it will automatically weigh and regulate the feed.
Ensures precise and consistent material flow, improving operational efficiency and reducing waste.

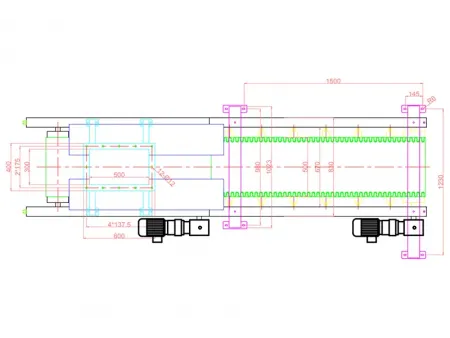

B500 Double Belt Weigher

Model	B500*2000
Voltage	AC380V
Power	1.1kW 1.1kW
Weighing accuracy	±0.5%
Capacity	0.5-6t/h
Reducer speed ratio	156

B650 Double Belt Weigher

Model	B650*2000
Voltage	AC380V
Power	1.1kW 1.1kW
Weighing accuracy	±0.5%
Capacity	1-8t/h
Reducer speed ratio	189

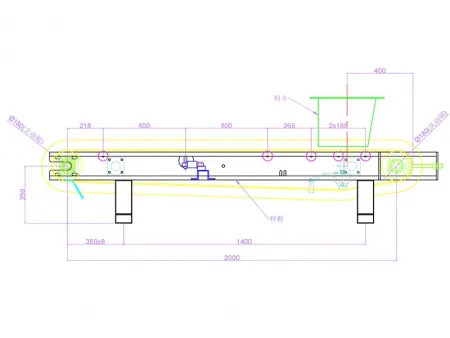

B500 Single Belt Weigher

Model	B500*2000
Voltage	AC380V
Power	1.1kW
Weighing accuracy	±0.5%
Capacity	0.5-5t/h
Reducer speed ratio	188

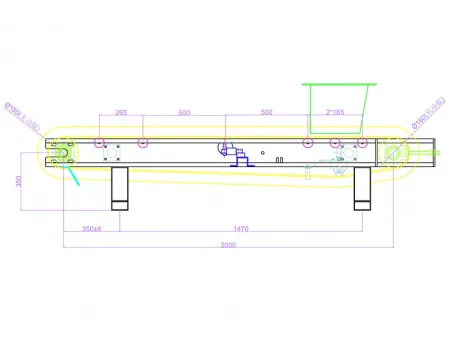

B650 Single Belt Weigher

Model	B650*2000
Voltage	AC380V
Power	1.1kW
Weighing accuracy	±0.5%
Capacity	1-8t/h
Reducer speed ratio	189

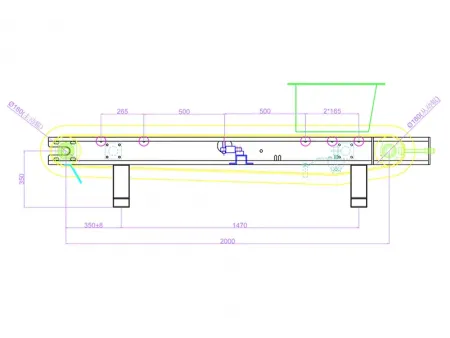

B800 Single Belt Weigher

Model	B800*2000
Voltage	AC380V
Power	2.2kW
Weighing accuracy	±0.5%
Capacity	2-20t/h
Reducer speed ratio	68
