Special Polyphenylene Sulfide (PPS) Manufacturer

Special Polyphenylene Sulfide (PPS)

Request a Quote

View All: http://nutrition-chemicals.com/5-4-special-products.html

PPS Cast Film

After being carefully chosen, PPS raw materials are melted and cooled down to form a reliable PPS cast film. PPS cast film has numerous beneficial properties such as heat resistance, flame retardance, minimal water absorption, insulation, and anti-corrosion.

Features

Excellent bonding force with glass/carbon fiber: Special PPS raw material with high performance is selected to improve the bonding force with glass fiber/carbon fiber;

Great resistance to corrosion: providing protection against most corrosive agents such as acids, alkalis, salts and organic solvents.

Excellent uniformity: small thickness fluctuation to meet the performance uniformity requirements of customers for thin film applications;

Impressive temperature resistance: long-term service temperatures up to 180℃ and short-term temperatures as high as 230℃.

Basic properties

Grade	Item	Unit	Index
MC1120	Avg. thickness	μm	120±3
	Width	mm	1205±5
	Tensile strength	Mpa	40-65
MC1060	Avg. thickness	μm	60±3
	Width	mm	1205±5
	Tensile strength	Mpa	40-65

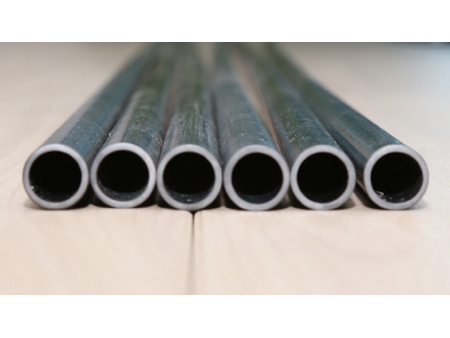

Thermal conductive PPS tube

PPS thermal conductive pipe is a type of special composite material consisting of a variety of additives added to a high-performing PPS substrate resin. The PPS heat pipe is lightweight and highly heat resistant. It also has superior corrosion resistance and mechanical properties. In addition, PPS thermal conductive pipe features a smooth inner and outer surface and a uniform, controllable diameter.

Features

Excellent thermal conductivity: the comprehensive thermal conductivity as high as 4 W/ (m * K);

Outstanding protection against corrosion: able to withstand most chemical elements like acids, alkalis, salts and organic solvents;

Temperature resistance: long-term service temperatures up to 180℃ and short-term temperatures as high as 230℃.

Recyclable and reusable.

Basic properties

Grade	Item	Unit	Index
19/15	Outer diameter	mm	19±0.2
	Inner diameter	mm	1200±20
	Length	m	≤10
	Hydraulic burst pressure	MPa	>1.5
25/20	Outer diameter	mm	25±0.2
	Inner diameter	mm	20±0.2
	Length	m	≤10
	Hydraulic burst pressure	MPa	>1.5

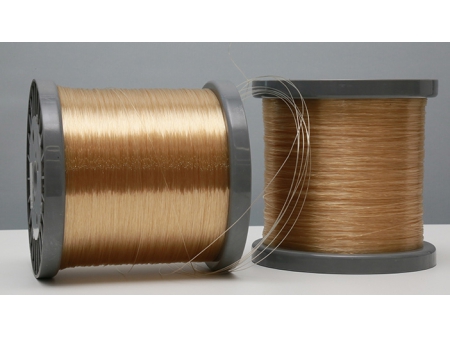

PPS Monofilament

PPS monofilament is manufactured via melt extrusion, drawing, and thermo-forming techniques. Products can be customized in terms of filament diameter and mechanical properties, tailored to meet the specific requirements of customers.

Features

Uniformity filament diameter: a minor variance in diameter, providing superior accuracy when filtering;

Excellent mechanical properties: the tensile strength and toughness of PPS monofilament can be adjusted according to customer requirements;

Outstanding heat-tolerance: long-term service temperatures up to 170℃ and short-term temperatures as high as 200℃.

Basic properties

Grade	Item	Unit	Index
0.20mm	Filament diameter	mm	0.20±0.007
	Tensile strength	cN/dtex	≥3.85
	Elongation at break	%	20-35
0.30mm	Filament diameter	mm	0.30±0.01
	Tensile strength	cN/dtex	≥3.35
	Elongation at break	%	20-35
0.50mm	Filament diameter	mm	0.50±0.01
	Tensile strength	cN/dtex	≥3.05
	Elongation at break	%	25-40
0.90mm	Filament diameter	mm	0.90±0.02
	Tensile strength	cN/dtex	≥2.70
	Elongation at break	%	25-40
