Copper Metallized PPS Film
Request a Quote

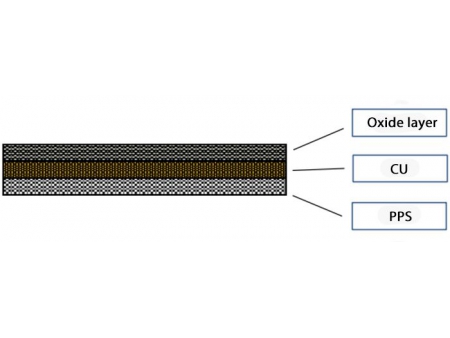

Vacuum metallized polyphenylene sulfide film
- Total thickness: (10μm to over 100μm) with a tolerance of ±3μm
- PPS layer thickness: (≥2μm) copper layer (≥0.1μm)
- Tensile strength: ≥30Mpa
- Width: 0.5mm to 990mm
- Elongation rate: ≥30% minimum
- Packaging: rolls (D30), sheets, 76mm removable rolls, inverted cone packaging
Copper metallized PPS film is an electrical insulation film using PPS film, commonly employed in the field of capacitors due to its performance characteristics. PPS plastic (Polyphenylene Sulfide) is a high-performance thermoplastic engineering plastic known for its exceptional attributes, including high-temperature resistance, corrosion resistance, and superior mechanical properties.
Features
- Ease of Coating
- Flame retardant, radiation resistance, and thermal insulation.
- High-temperature insulation
- High adhesion strength and dielectric strength
- Outstanding voltage resistance and tensile strength
- Perfect balance of electrical, chemical, and physical properties
Applications
- Thin and heat-resistant parts for fastening and electrical insulation
- Used in TAB bonding (tape automatic bonding), heat-resistant films, etc
- Flame retardant materials
- Thermal insulation materials
- Data transmission cable
- EMI shielding
