PPS Braided Sleeving

Request a Quote

Website: http://sleeving-product.com/pps-braided-sleeving-7-2.html

EX902

• Material: Polyphenylene sulfide (PPS)
• Color: Black
• Operating Temperature: -70°C to 200°C
• Flame Retardancy: Self-extinguishing material
• Packaging: Paper reel

Now

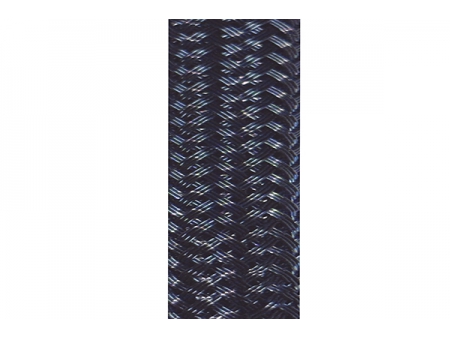

EX902 series is a braided sleeving manufactured from polyphenylene sulfide (PPS) monofilament. This material offers an ultra-wide operating temperature range, extremely low moisture absorption, and excellent dimensional stability, maintaining reliable mechanical performance and chemical resistance in high-temperature environments.

Applications

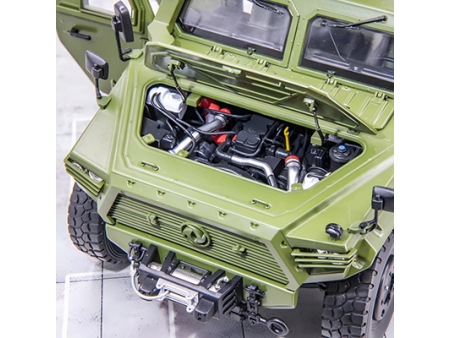

This durable braided sleeving is designed to protect hoses, wire harnesses, and cable assemblies from abrasion, cuts, and wear in high-temperature operating conditions.

Certifications

Parameters

Model	Flat Width (mm)	Application Range (mm)	Packaging Length (m/reel)
EX902000301	3±1	1~5	1000
EX902000601	6±2	3~9	500
EX902220801	8±2	5~12	300
EX902001001	10±2	7~15	300
EX902001201	12±2	8~18	300
EX902001401	14±2	10~20	300
EX902001601	16±3	12~22	300
EX902001901	19±3	14~25	300
EX902002501	25±3	18~30	200
EX902002801	28±4	20~35	200
EX902003201	32±4	25~40	200
EX902003801	38±4	30~45	100

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
