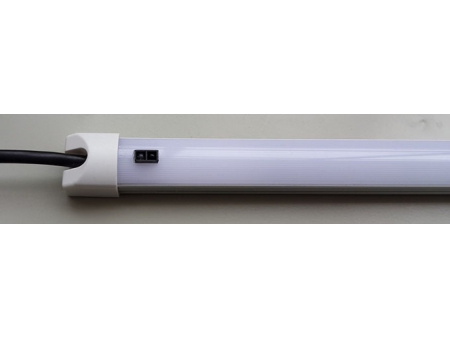

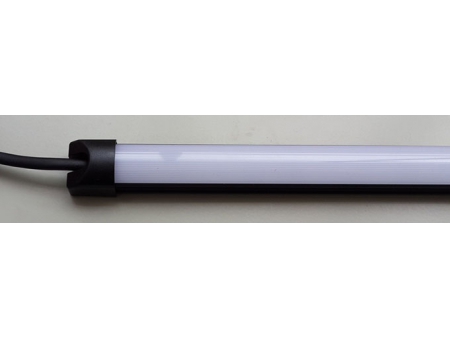

LED Strip Lamp with Aluminum Housing
Description
The SL2010 series small aluminum light bars are ideal for interior or exterior lighting applications. The PC light diffusion lens provides an outstandingly smooth and even light output, and the aluminum housing ensures the heat dissipation and service life. The aluminum surface on the aluminum LED light is either a natural oxide or black oxide.
They aluminum housing LED light bar also comes with a frosted lens that also provides a smooth and even output.
Features:
1. surface mount installation
2. over voltage protection
3. The aluminum extrusion housing design allows heat to easily dissipate, and ensures a long service life.
4. Colors are available in black or aluminum oxidation color.
5. Aluminum color oxidation finish
| Part No | LED Light source | power | Luminous Flux | Length | Comments |
| | 30pcs | 5W | 500 lm | L=500mm | |
| | 45pcs | 7.5W | 750 lm | L=750mm | |
| | 60pcs | 10W | 1000lm | L=1000mm | |
| | 30pcs | 6W max | 500 lm | L=500mm | With a switch |
| | 45pcs | 9W max | 750 lm | L=750mm | |
| | 60pcs | 12W max | 1000lm | L=1000mm | |
| | 30pcs | 6W max | 500 lm | L=500mm | With an infrared sensor |
| | 45pcs | 9W max | 750 lm | L=750mm | |
| | 60pcs | 12W max | 1000lm | L=1000mm |
Specification:
Operating Voltage:DC12V;DC24V;10~33VDC;
Operating Temperature: -40~60℃
Light Source: 5050LEDs, CRI>80
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white
Diffused PC lens (Frosted)
Aluminum Extrusion housing in black or aluminum color oxidation finish
Available for Silicon glue potting to get IP67, water-proof and corrosion resistant
Applications
The LED strip lamp is commonly used in cabinets, cabins, motor homes, caravans, shelters, refrigerator cars, and other special vehicles in the mining and marine industry.
