Paddy Huller, Rice Milling Machine

The paddy huller is designed to accurately remove the rice husk. Its vibrating feeder gently guides each grain precisely between two rubber rollers to prevent grain breakage.

Features
  • Rubber rolls
    The rubber rolls are automatically controlled using pneumatic components. They will automatically close when grain is detected.
  • Vibrating feeder
    It uses a vibrating feeder to gently guide grain into the slide. The lengthened slide reduces the grain’s drop impact, thus minimizing the breakage rate.

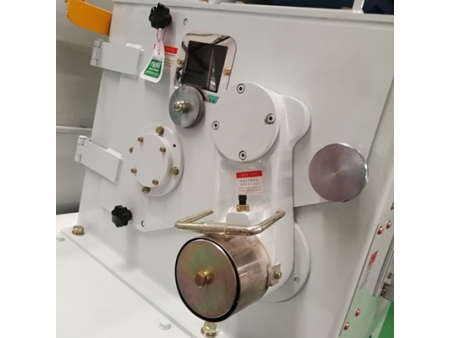

  • Double-pivot structure
    The double-pivot allows the machine to run more smoothly.
  • Easy to adjust
    It uses a pressure regulating valve to adjust the pressure between the rubber rolls. The air suction and material flow volumes are both adjustable via the adjustment handle.
Specifications
Model SLJ-MLGQ25C SLJ-MLGQ51 SYX-MLGQ25E SYX-MLGQ25E*3
Input Capacity (T/H) 3-5 6-8 3.5-5.5 10-12
Power (kW) 7.5 11 7.5 4 7.5*3 1.5
Dedusting Connection (M³/Min) 56-61 83-91 56-61 160-180
Weight (Kg) 900 1000 1170 1500
Dimensions (L*W*H)(mm) 1620*1340*2410 1690*1520*2500 1758*1505*2722 4250*1465*3040
Rubber Roll Dimensions (Φ*L)(mm) 254*254 254*508 254*254 254*254
Working Principle

The paddy huller uses two rubber rolls to squeeze the grain for separating the husk and rice paddy. It uses an airflow to blow husks and rice to separate them and send them to the respective collection boxes. This airflow also helps cool the rolls, while the rubber roll pressure is also adjustable to suit different paddy rice types. The air suction and material flow volume are both adjustable.

Core Components

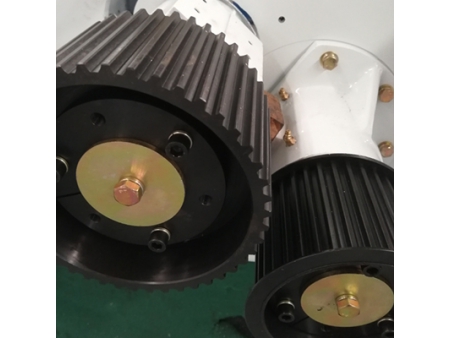

  • Synchronous drive conveyor belt
  • Double-pivot structure

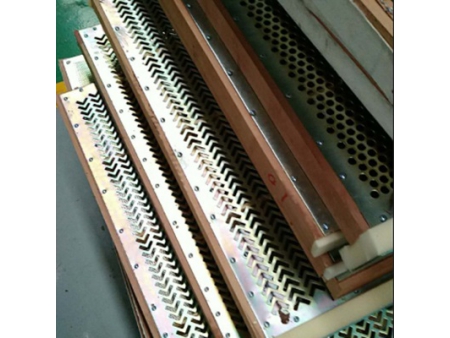

  • Slide

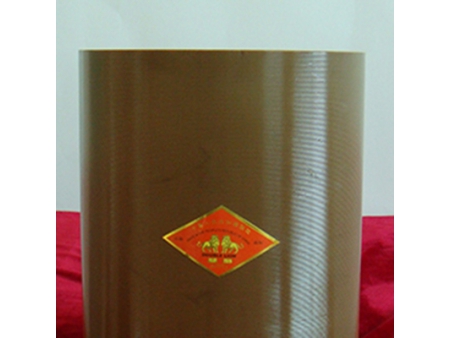

  • Rubber rolls
Samples
  • Finished product
  • Grain
  • Husk

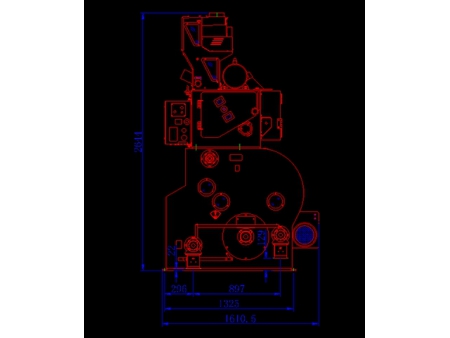

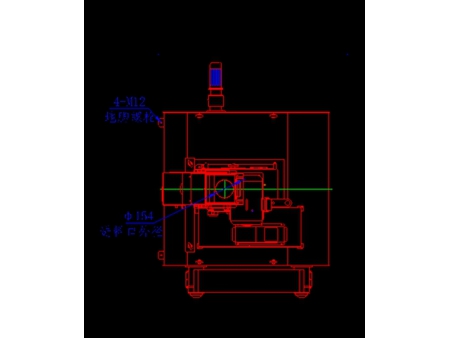

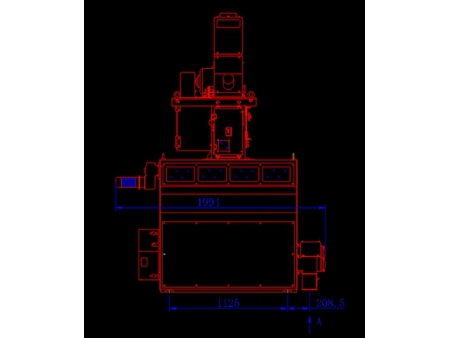

Structure Diagram
