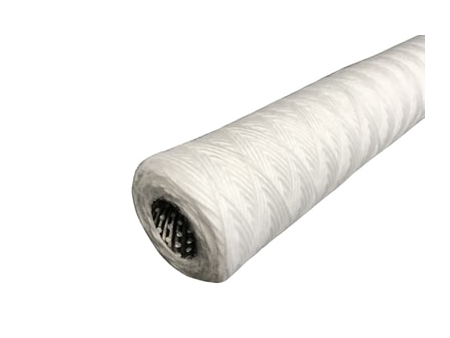

String Wound Filter Cartridge, PLX Series

String Wound Filter Cartridge, PLX Series
String Wound Filter Cartridge, PLX Series
Request a Quote

Our string wound filter cartridges are meticulously crafted using specific techniques, featuring tightly wound textile fibers (polypropylene, cotton, or glass fiber) around a porous framework (PP or SS core tube), creating a honeycomb structure. This design efficiently filters out suspended particles, rust, and other impurities, all while minimizing pressure drop and maximizing dirt holding capacity.

Materials of Construction
Filter Medium PP (Polypropylene), CO (Cotton), GF (Glass Fiber), OF (Organic Fiber)
Filter Layer Polypropylene, Stainless Steel, Glass Fiber
Central Frame PP/304 Stainless Steel/316L Stainless Steel
Specifications
Outside Diameter 63mm
Length 5 ", 10 ", 20 ", 30 ", 40 ", 60 ", 70"
Inside Diameter 28mm/30mm
Max. Operating Temperature PP: 60℃ CO: 120℃ GF: 200℃ FO: 120℃
Max. Differential Pressure Max. Differential Pressure: 4.0bar
Recommended Differential Pressure: 2.0bar
Micron Rating 0.5μm, 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm
Outside Diameter 63mm/114mm
Features
  • Multiple material options for various liquid filtration needs
  • PP (Polypropylene) offers great chemical compatibility (pH1~13)
  • Honeycomb structure for effective impurity filtration
Applications
  • Filtration before reverse osmosis water treatment
  • Various precision filtration processes
  • Filtration of hydraulic oil and other industrial oils
  • Filtration in the pharmaceutical industry: alcohol, water preparation, VC raw materials, tetracycline solutions, injection solutions, etc.
  • Other filtration applications: resin lenses, bearing cleaning, laser cooling water, ultrasonic cleaning solution, electroplating solution, etc.
