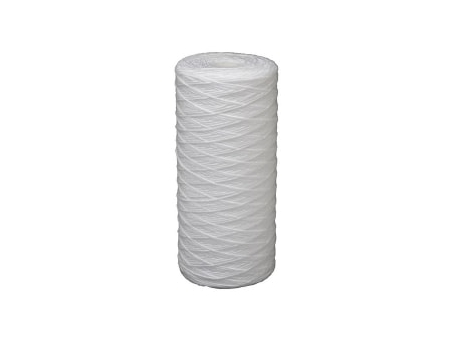

String Wound Filter Cartridge, PLX-B Series

String Wound Filter Cartridge, PLX-B Series
String Wound Filter Cartridge, PLX-B Series
String Wound Filter Cartridge, PLX-B Series
Request a Quote

Our string wound filter cartridges, with an outer diameter of 4.5", feature a porous structure with sparse outer layer and dense inner layer, enabling effective removal of suspended particles, rust, and other impurities. Enjoy advantages like low pressure drop, high dirt holding capacity, large filtration area, and extended lifespan with our string wound filter cartridges.

Materials of Construction
Filter Medium PP: Polypropylene
Central Frame PP
Specifications
Outside Diameter 114mm
Length 10"/20"
Max. Differential Pressure Max. Differential Pressure: 4.0bar
Recommended Differential Pressure: 2.0bar
Max. Operating Temperature PP: 60℃
Features
  • High mechanical strength and resistance to deformation under demanding conditions
  • Simple system design without consumption of acids or alkalis, reducing waste pollution

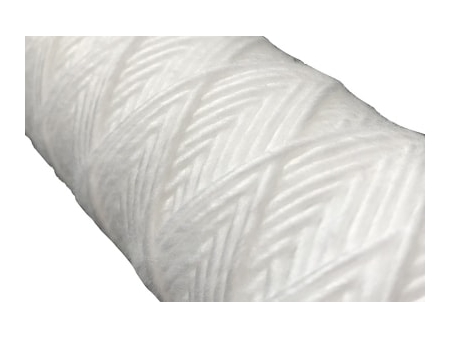

  • Honeycomb structure with sparse outer layer and dense inner layer for efficient impurity filtration
Applications
  • Filtration before reverse osmosis water treatment
  • Various precision filtration processes
  • Filtration of hydraulic oil and other industrial oils
  • Filtration in the pharmaceutical industry: alcohol, water preparation, VC raw materials, tetracycline solutions, injection solutions, etc.
  • Other filtration applications: resin lenses, bearing cleaning, laser cooling water, ultrasonic cleaning solution, electroplating solution, etc.
