YD-R5000KJ

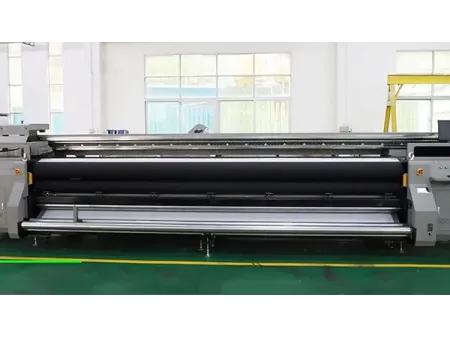

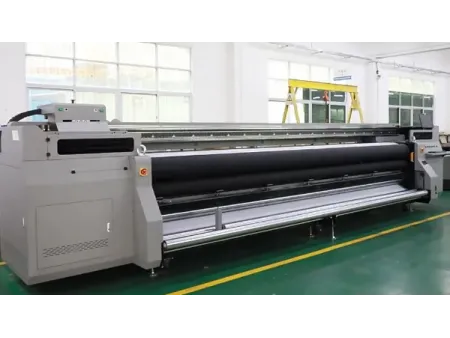

The YD-R5000KJ UV roll-to-roll digital printer developed by Yotta, is designed to achieve high-quality, full-color large-format printing. Its 5-meter-wide printing capacity and UV-LED curing system ensure efficient production.

Equipped with industrial-grade Kyocera KJ4A printheads, our roll-to-roll printing systems achieve remarkable speed without sacrificing quality. With a maximum resolution of 635x2400 dpi and 4pl droplet printing, it's ideal for intricate graphics with smooth color transitions. Whether printing on wallpaper, PVC film, canvas, vinyl, or other flexible materials, the YOTTA YD-R5000KJ will exceed your expectations.

Wide-format capability: Effortlessly print graphics up to 5 meters wide
Equipped with high-performance Kyocera KJ4A printheads to Deliver exceptional speed and accurate color reproduction
Stunning 635x2400 dpi resolution to produce vibrant images with smooth transitions and intricate details
Versatile CMYK, LC, LM, and white ink: Expand your creative options and achieve a wider color range

Applicable Materials

Vinyl & canvas: Ideal for both high-quality art reproductions and durable outdoor signs.

Plastic film & PVC: Great for creating flexible and resilient prints that last.

Applications

Wallpapers: Transform spaces with custom designs, from subtle patterns to bold artwork.

Car wraps and floor stickers: Produce eye-catching graphics for vehicles and durable decals for flooring that stand up to foot traffic.

Advertising materials: Elevate your marketing with standout banners and signs.

Canvas wall art: Bring artistic visions to life with prints that capture every detail.

Specifications

Printer model	YD-R5000KJ
Printing size	5000 mm (16.7 ft)
Printhead	Kyocera KJ4A grey level Piezo print head
Printhead quantity	2-8 pcs (4-7 colors optional)
Print resolution	635×2400 dpi
Material thickness	Up to 50mm (2in)
Material type	Roll to roll material
UV curing system	LED UV lamp
Ink type	Original imported UV curable ink (No VOC)
Ink color	C, M, Y, K, LC, LM, White ink, Varnish (optional)
Interface mode	High speed USB
RIP software	Photoprint/Onyx
Color management	International standard ICC
Input format	PDF, JPEG, TIFF, EPS, AI
Printer weight	5000kg
Printer size (L×W×H)	8600×2300×1900mm (28.2×7.6×6.3ft)
Packaging size (L×W×H)	8720×2450×2000mm (28.6×8×6.6ft)
Power supply	220V/AC(±10%), 50/60 HZ, 8.5 kW
Working environment	Temperature: 18℃~30℃ (64℉~86℉) Humidity: 30%~70% (non-condensing)

Features

High Resolution & Fast Speed

Equipped with 2-8 Kyocera industrial printheads featuring 4pl variable droplet printing and a 30KHz firing frequency, this RTR digital printer delivers exceptional 635x2400 dpi print resolution. Its wide printheads and high frequency ensure remarkable printing speeds.
Precision engineering using a five-axis machining center guarantees exceptional accuracy throughout the printer frame.
Special marble flat scales ensure precise alignment of the lead rail (within 0.02mm) and parallelism (0.01mm), enabling smooth, accurate carriage movement.

Stable and Reliable

The RTR printing has a steel frame that undergoes high-temperature tempering, ensuring it remains stable during transport and handling.

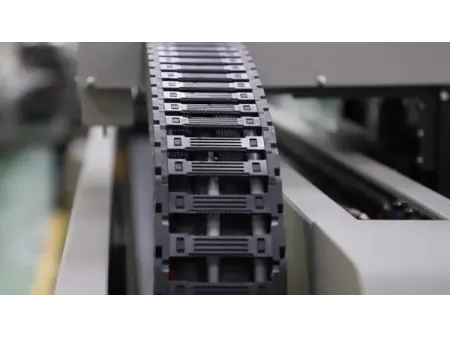

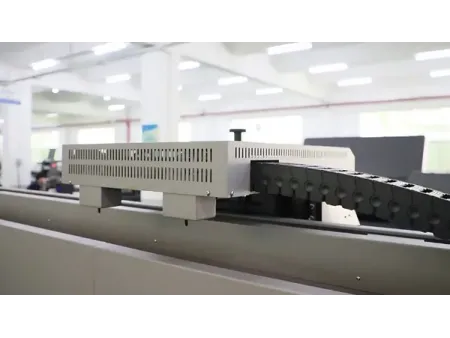

The double rail steel frame beam design enhances carriage stability, guaranteeing fast and smooth printing.
The beam and the entire frame are crafted using a large five-axis machining center, ensuring exceptional precision.

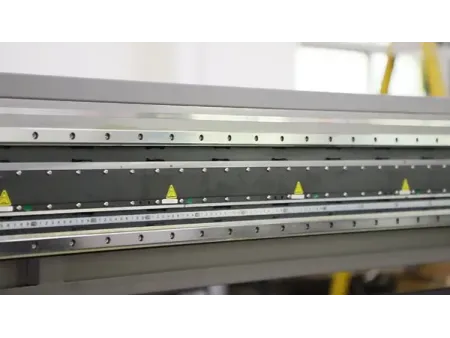

The UV printer utilizes a metal grating ruler for high precision printing, even at high speeds.

User-Friendly Design

Automatic media thickness measurement eliminates manual adjustments.
Mute guide effectively minimizes operational noise.
Safety protection grating safeguards both the machine and personnel.
Dual negative pressure systems for color and white inks ensure stable, consistent ink supply.

Environmentally Conscious

This roll-to-roll digital printer uses eco-friendly UV inks that are VOC-free, meeting environmental standards.

Sustainable Economy

The LED-UV ink curing system boasts a longer lifespan than mercury lamps, reduces excess heat, saves energy, and increases efficiency.
Variable ink droplet printing effectively minimizes ink consumption.
High-end Kyocera inkjet printheads offer a low failure rate and long lifespan, making them ideal for mass production.
High-quality components reduce maintenance costs and the need for frequent parts replacement.
