YD-R3200KJ

This UV roll-to-roll printer delivers high-quality, full-color large-format prints up to 3.2 meters wide. Equipped with UV-LED curing system to ensure quick, efficient ink curing for increased productivity.

Industrial-grade Kyocera KJ4A printheads guarantee both speed and precision. This printer offers a maximum resolution of 635x2400 dpi and 4pl droplet printing for images with smooth transitions and intricate details. Whether printing on wallpaper, PVC film, canvas, vinyl, or other flexible materials, our YD-R3200KJ UV roll-to-roll digital printer simplifies your workflow and exceeds expectations.

  • Wide-format printing capability to effortlessly print graphics up to 3.2 meters wide
  • Equipped with high-performance Kyocera KJ4A printheads to deliver exceptional speed and accurate color reproduction
  • 635x2400 dpi resolution to enhance the production of vibrant images with smooth transitions and intricate details
  • Capable of using CMYK, Lc, Lm, and white ink to expand your creative options and achieve a wider color range
Applicable Materials
  • Vinyl and canvas: Bring your artwork and signs to vibrant life.
  • Plastic film & PVC: Perfect for prints that need to bend without breaking.
Applications

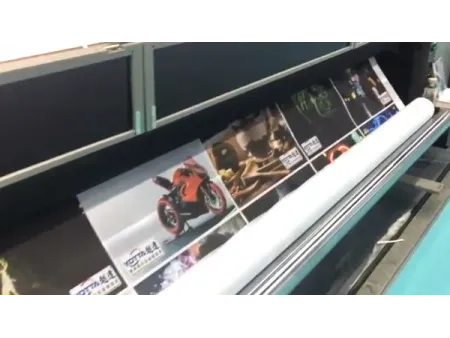

Wallpaper, car sticker, floor sticker, advertising, canvas wall art, etc

  • Wallpapers: Customize any room with your unique designs.
  • Car wraps and floor stickers: Make a statement on the move or underfoot with durable decals.
  • Advertising materials: Catch every eye with striking promotional pieces.
  • Canvas wall art: Turn photos and paintings into lasting masterpieces.
Specifications
Printer model YD-R3200KJ
Printing size 3200 mm (11 ft)
Printhead Kyocera KJ4A grey level Piezo print head
Printhead quantity 2-8 pcs (4-7 colors optional)
Print resolution 635×2400 dpi
Material thickness Up to 50mm (2in)
Material type Roll to roll material
UV curing system LED UV lamp
Ink type Original imported UV curable ink (No VOC)
Ink color C, M, Y, K, LC, LM, White ink, Varnish (optional)
Interface mode High speed USB
RIP software Photoprint/Onyx
Color management International standard ICC
Input format PDF, JPEG, TIFF, EPS, AI
Printer weight 2300kg
Printer size (L×W×H) 6600×1500×1600mm (21.6×4.9×5.2ft)
Packaging size (L×W×H) 6900×1790×1810mm (22.6×5.9×5.9ft)
Power supply 220V/AC(±10%), 50/60 HZ, 6 kW
Working environment Temperature: 18℃~30℃ (64℉~86℉)
Humidity: 30%~70% (non-condensing)
Features
High Resolution & Fast Speed
  • Equipped with 2-8 Kyocera industrial printheads featuring 4pl variable droplet printing and a 30KHz firing frequency, this RTR digital printer delivers exceptional 635x2400 dpi print resolution. Its wide printheads and high frequency ensure remarkable printing speeds.
  • Precision engineering using a five-axis machining center guarantees exceptional accuracy throughout the printer frame.

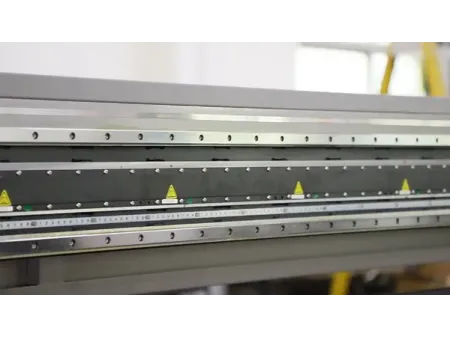

  • Special marble flat scales ensure precise alignment of the lead rail (within 0.02mm) and parallelism (0.01mm), enabling smooth, accurate carriage movement.
Stable and Reliable
  • The RTR printing has a steel frame that undergoes high-temperature tempering, ensuring it remains stable during transport and handling.

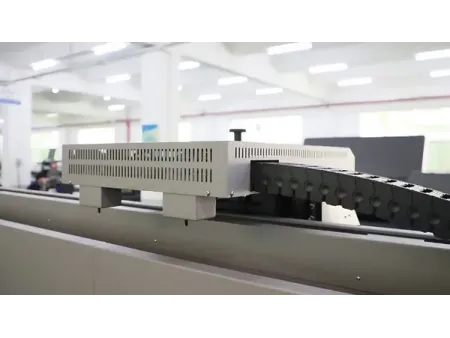

  • The double rail steel frame beam design enhances carriage stability, guaranteeing fast and smooth printing.
  • The beam and the entire frame are crafted using a large five-axis machining center, ensuring exceptional precision.
  • The UV printer utilizes a metal grating ruler for high precision printing, even at high speeds.
User-Friendly Design
  • Automatic media thickness measurement eliminates manual adjustments.
  • Mute guide effectively minimizes operational noise.
  • Safety protection grating safeguards both the machine and personnel.
  • Dual negative pressure systems for color and white inks ensure stable, consistent ink supply.
Environmentally Conscious
  • This roll-to-roll digital printer uses eco-friendly UV inks that are VOC-free, meeting environmental standards.
Sustainable Economy
  • The LED-UV ink curing system boasts a longer lifespan than mercury lamps, reduces excess heat, saves energy, and increases efficiency.
  • Variable ink droplet printing effectively minimizes ink consumption.
  • High-end Kyocera inkjet printheads offer a low failure rate and long lifespan, making them ideal for mass production.
  • High-quality components reduce maintenance costs and the need for frequent parts replacement.
