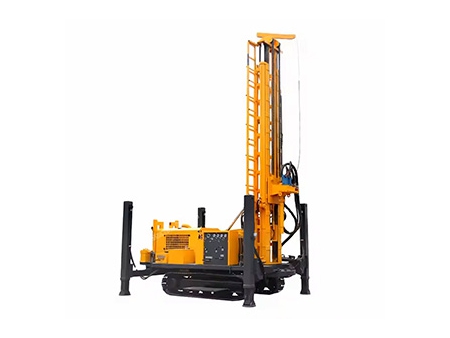

KW1000 Water Well Drilling Rig
The geothermal and water well drilling rig is designed for efficient drilling in various geological formations, making it ideal for water wells and geothermal heat pump projects. Equipped with key hydraulic components from top international brands, this rig ensures low failure rates, extended service life, and reduced machine weight. With an impressive lifting capacity of up to 52 tons and a maximum drilling diameter of 800mm, it is built to handle demanding tasks.
The hydraulic system precisely controls the operations of drill mast lifting, rod loading and unloading, rotary feed, stabilizing outriggers, winching, and mobility. significantly reducing labor intensity while improving operational efficiency and construction quality. Each drilling rig in this series can be optionally mounted on a truck chassis for added mobility.
Drilling Depth: 1000m
Drilling Diameter: Ø105-800mm
Diesel Engine: Cummins brand
- Fully Hydraulic Control for Convenience and Flexibility
- Adjustable speed, torque, propulsion shaft pressure, reverse shaft pressure, propulsion speed, and lifting speed.
- Adaptable to various drilling tools and construction processes, ensuring optimal performance in diverse conditions.

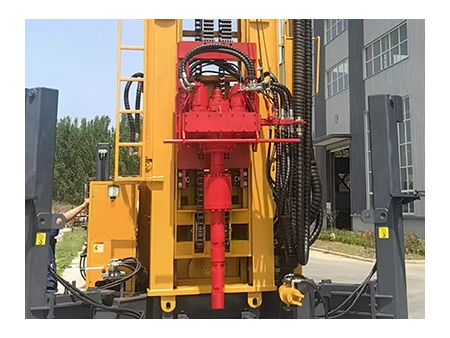

- Top Drive Rotary Propulsion
- Quick and easy connection and disconnection of drill pipes, saving time.
- Supports continuous drilling with ease, enhancing efficiency and operational flow.

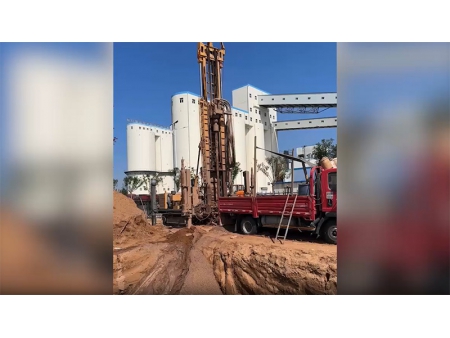

KW1000 Water Well Drilling Rig at Work Site in Tanzania

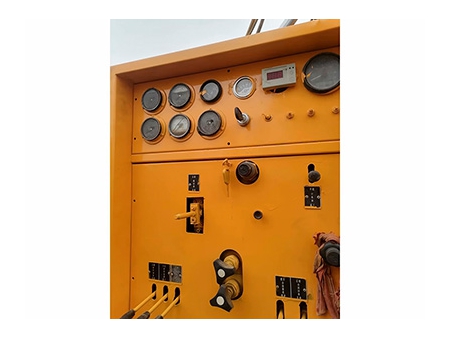

- Control panel

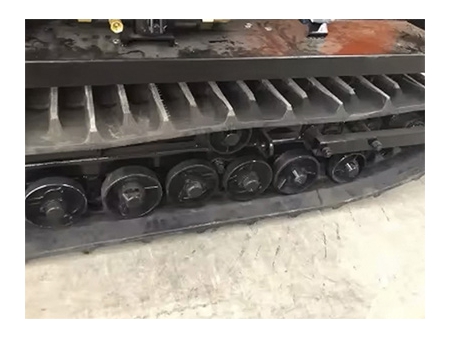

- Crawler track

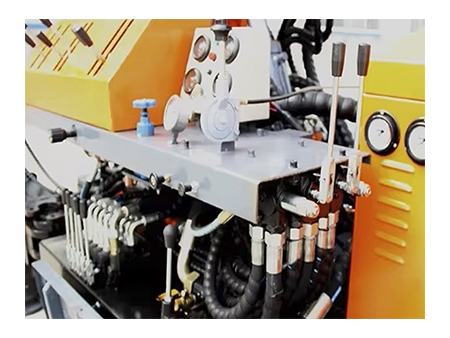

- Control handle
- Rotating motor
| Model | KW1000 |
| Drilling depth | 1000m |
| Drilling diameter | Ø105-800mm |
| Working pressure | 1.6-8MPa |
| Air consumption | 16-96m³/min |
| Drill pipe length | 6m |
| Drill pipe diameter | 114mm |
| Axial pressure | 8T |
| Lifting force | 52T |
| Fast lifting speed | 30m/min |
| Fast feeding speed | 61m/min |
| Max. rotation torque | 20000-10000N.m |
| Max. rotation speed | 70-140r/min |
| Lifting force of big auxiliary winch | - |
| Lifting force of small auxiliary winch | 2.5T |
| Outrigger stroke | 1.7m |
| Drilling efficiency | 10-35m/h |
| Travelling speed | 5 km/h |
| Tilt angle | 21 |
| Diesel engine | Cummins Brand |
| Power | 194Kw |
| Weight | 17500kgs |
| Dimensions | 7000x2250x3000mm |
| Application | Complicated geological conditions: rock, mud, sand, etc. |
| Drilling method | Rotary and propulsion hydraulic top drive, DTH or mud pump |
