Automatic Elastic Joining Machine
Upgrade your production process with the latest innovation from Hikari - the automatic elastic joining machine. Simplifying the tedious task of elastic band sewing, this advanced machine is a game-changer for clothing manufacturers, suppliers, and sewing industries.
Designed for various elastic band sewing in garment production, including underwear, sportswear, children's clothing, bags, thermal wear, hats, yoga wear, and loungewear, our sewing machine offers intelligent image recognition, ensuring accurate alignment, rapid automatic cutting, joining, multi-needle stitching, and material feeding.
Our intelligent image recognition technology replaces the need for manual logo and letter alignment, ensuring flawless results and significantly reducing production time and errors caused by manual labor. With this latest innovation from Hikari, one worker can handle 5 elastic joining machines.
| Model | | | |
| Needle | DPX17Y11# | DPX17B11# | DPX17Y11# |
| No. of needles | 1 | 1 | 1 |
| No. of threads | 2 | 2 | 2 |
| Needle pitch | 0.05-12.7 | 0.05-12.7 | 0.05-12.7 |
| Presser foot lifting height | 8 | 8 | 8 |
| Sewing length | Min. 180mm | Unlimited | Min. 180mm |
| Elastic band width range | 8-50mm | 8-50mm | 50-80mm |
| Speed (S.P.M) | 2800 r/min | 2800 r/min | 2800 r/min |
| Dimensions | 1860x1200x1370mm | 1860x1200x1370mm | 1860x1200x1370mm |
-
-

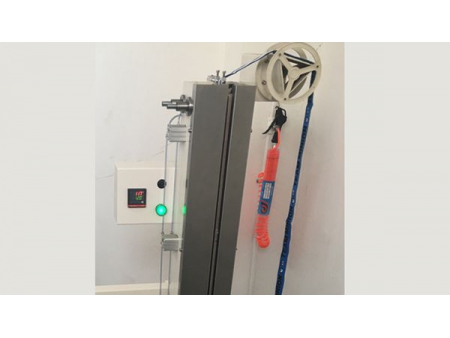

Automated Ironing & Pressing Ensures neat and flat elastic bands, eliminating the need for separate ironing procedures, resulting in high-quality products.
-
-

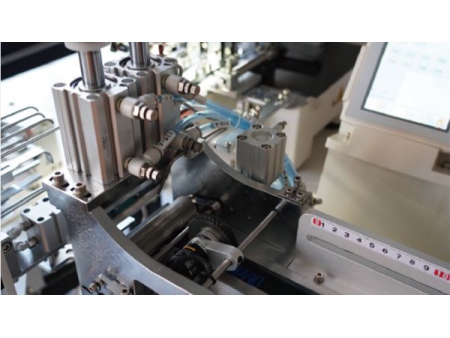

Automatic Three-Point PositioningMeets the requirements for high-end products, expanding the machine's application range.
-
-
-
Image Recognition Technology Identifies elastic band logos and lettering positions accurately, saving time and increasing work efficiency.
-
-
-
- Bobbin Detection: Automatically notifies for bobbin replacement and thread breakage, enhancing stitching efficiency and eliminating defects.
- Ultrasonic Edge Cutting: Produces neat edges and uniform cuts, guaranteeing superior stitching quality.
- Versatile Stitching: Achieves diverse stitching patterns with aesthetically pleasing results. Elastic stitching ranges from 8mm to 80mm, with a minimum elastic circumference of 180mm, which it widely applicable.
- Anti-Overlap Detection: Halts automatically to avoid defects.
- Automatic Material Feeding: Suitable for both small and large-sized garments, ensuring product quality while minimizing waste.
