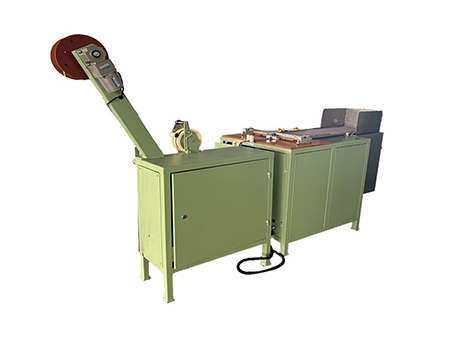

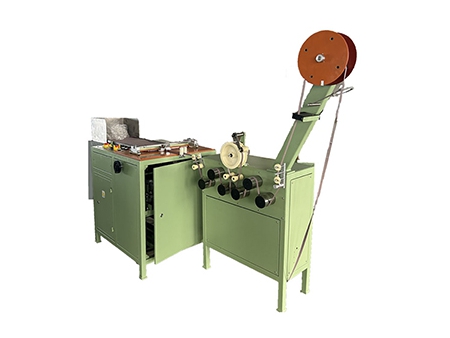

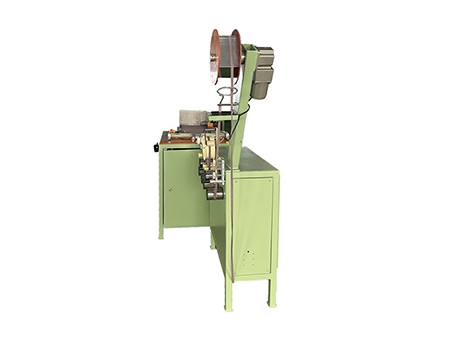

Tape Festooning Machine Semi-automatic packing machine for handling elastic and rigid tapes
Request a Quote
The semi-automatic high-speed festooning machine is used in the narrow fabric industry. It consists of a main unit and a tape feeding system and is suitable for packaging elastic and non-elastic tapes ranging from 4mm to 65mm in width. It provides an efficient and reliable solution for high-speed packaging of various tape products. It is equipped with a needle inspection stop function, which automatically halts operation when staples are detected during tape feeding, ensuring smooth and safe performance.

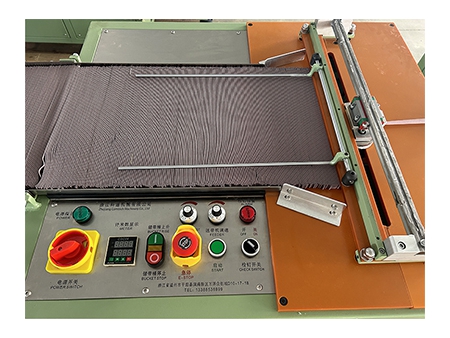

- Control panel interface

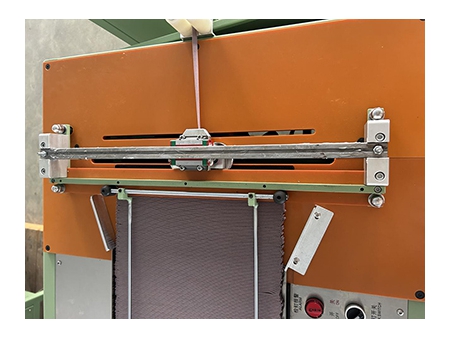

- Tape arrangement area
| Tape Width | 4-65mm |
| Packaging Size | 35×35×25cm |
| Packaging Speed | 125m/min |
| Applicable Materials | Elastic or non-elastic tapes |
| Power Supply | 220V 50/60Hz |
| Total Power | 0.82kW |
| Dimensions | Total Height: 168cm Main machine size: W85cm×L138cm×H102cm Feeder size: L120cm×W45cm |
| Machine Weight | 284kg |
- Front and rear frequency control systems allow separate speed adjustments for both ends of the machine. The adjustable take-up disc and removable cover plate ensure ease of use.
- Equipped with a tape jam shutdown protection feature, that halts the operation automatically in case of tape jams, enhancing safety and reliability.
- Integrated metal detector stops the machine automatically upon detecting staples, improving safety.
- Features an accurate meter counter that tracks production output with precision to enhance operational efficiency.
- A geared motor ensures consistent tape output at a fixed speed, simplifying manual packaging and reducing operator fatigue.
