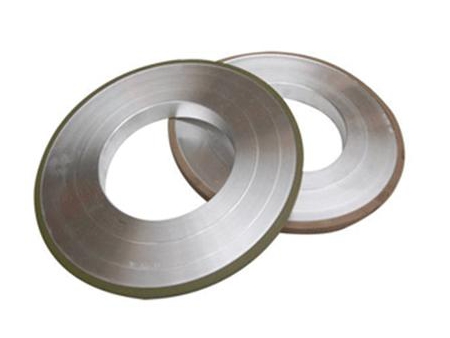

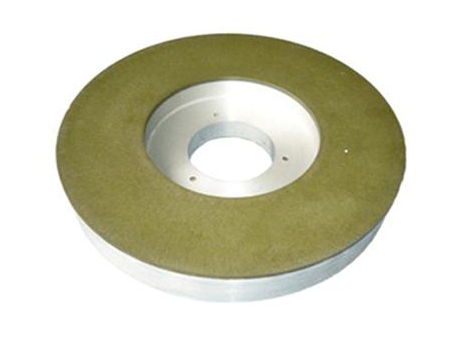

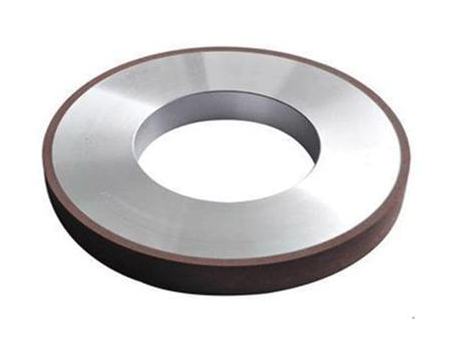

CBN Grinding Wheel

Request a Quote

View All: http://diamondtoolcn.com/electroplated-diamond-cbn-grinding-wheel.html

The CBN (cubic boron nitride) grinding wheel features a strong cutting force and high hardness. It is suitable for grinding high rigidity and low heat transfer materials, such as high speed steel and steel tools.

Features

Excellent heat stability: the heat resistance of the CBN grinding wheel reaches 1250℃ to 1350℃. It can still remain high-quality grinding performance even though sparks produced while grinding.
Fine grinding surface: sharped grinding edge, small grinding force, high precision dimension.
During the grinding process of CBN grinding wheel, only the oil cooling coolants are allowed while the water coolants are not.

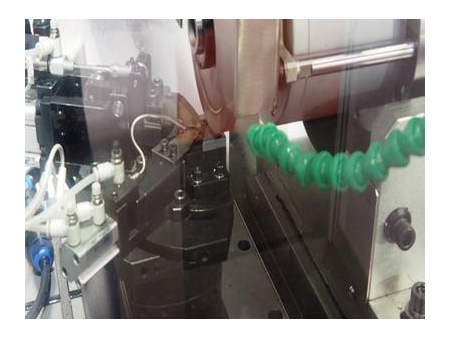

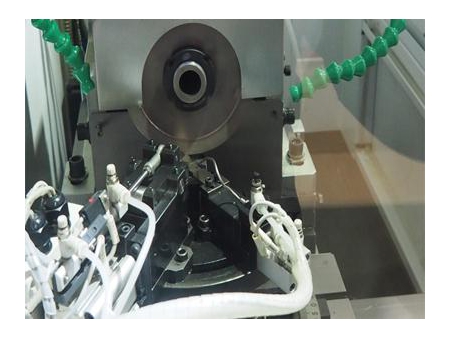

Processing Methods

Face grinding
Cylindrical grinding
Internal grinding
Cutting
Others

Machinable material

Ceramics
Hard alloy
Special steel such as high speed steel
Cast iron
Magnetic material
Others

Parameter

Type of grinding wheel	Abrasive grit	Surface roughness	Application
Resinoid bonded grinding wheel	100/120-170/200	0.16-0.63	Used for semi-grinding, grinding, polishing and so on
	170/200-230/270	0.08-0.32
	M36/54-M10/20	0.04-0.16
	M10/20-M0/0.5	0.01-0.08

Specification

Diameter （R）	Height （H）	Aperture （r）	Thickness （T）
50	10	10	4
80	10	20	4
100	10	20	4
100	8	20	4
100	16	20	4
125	6	32	4
125	8	32	4
125	10	32	4
125	16	32	4
125	20	32	4
150	8	32	4
150	10	32	4
150	12	32	4
150	16	32	4
150	20	32	4
180	10	31.75	4
180	3	31.75	4
200	10	32	4
200	16	32	4
200	20	32	4
250	20	32	5
250	25	32	5
250	25	75	5
350	40	127	5
350	40	127	10
