CBR-1 Laboratory CBR loading machine

CBR Test Apparatus is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed, subcrust as well as material layer of the roadbed to be designed. It consists of a twin column frame, proving ring, penetration bar, loading plate, micrometer, measuring device for swell increment etc. and easy to operate.

Technical Parameters
Product Model CBR-1
Capacity 30kN, 50kN (selectable)
Load speed 1.0mm/min.
Penetrating bar Ø50mm x 100mm
Platen size Ø170mm
Platen travel 50mm
Mold Ø152mm x 170mm
Standard accessories
  • Main machine 1set
  • Proving ring 1pc
  • Penetration bar 1 set
  • Instruction book 1 copy
  • Certificate of Quality 1copy
CBR-2 Laboratory CBR loading machine

This is Multispeed analogue type CBR machine, having selectable speed rates of 1mm/min and 1.27mm/min.

It features a rigid two column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts.

The drive force is provided by a mechanical jack housed in the base cabinet

Technical Parameters
Multispeed 1mm/min, 1.27mm/min
Max capacity 50KN
Penetration bar Diameter of Platen:Ф50±0.05mm. Length100mm
Power AC220V±10% 50Hz
Standard accessories
  • Main machine 1set
  • Proving ring 1pc
  • Penetration bar 1 set
  • Instruction book 1 copy

This Field CBR test set is used in site to test CBR value to determine quickly and efficiently the bearing capacity of soils on road constructions, foundations, road subgrades etc

Technical Parameters
Product Model TBTLCB-2
Hydraulic jack 100kN
Capacity 60kN
Penetrating rod Ø50mm x 200mm
Bearing plate 1.25kg/ea.
Mechanical Loading Press
  • GB, BS standard moulds are available
  • CBR Mould with perforated base plate, ASTM
  • Bottom (CBR mould)
  • Solid Base Plate for CBR Mould, ASTM
  • Spacer Disc with T handle , ASTM
  • Annular Surcharge weight 2270g, ASTM
  • Slotted Surcharge weight 2270g, ASTM
  • Slotted Surcharge weight 2270g, ASTM

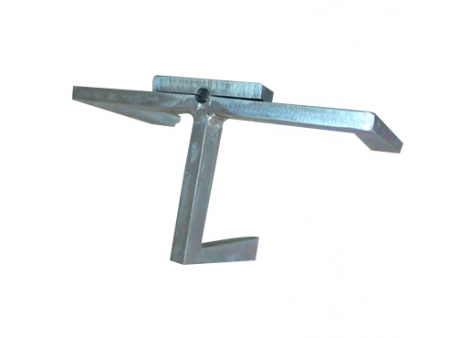

  • Tripod, dial gauge supporte
  • Tripod, dial gauge supporte
  • Steel rule 300mm long, grad. 0.5mm

Dial gauge 25mm range, 0.01mm sub div.

Filter screen, stainless steel, dia.149mm, mesh 0.150mm

Filter paper dia. 150mm, pack of 100Pcs
