PET Braided Self Closing Sleeving

Request a Quote

Website: http://sleeving-product.com/6-3-multifilament-self-closing-braided-sleeving.html

Specifications

• Material: polyester mono and multifilament
• Working temperature: -40℃- 150℃
• Melting temperature: 240℃±10℃
• Fire proofing grade: UL94-V1
• Edge Overlap： 25%
• Color: Black, White, Gray...
• Cutting Tools： Hot knife/ Scissors
• Product certification: ROHS, Halogen Free

Now

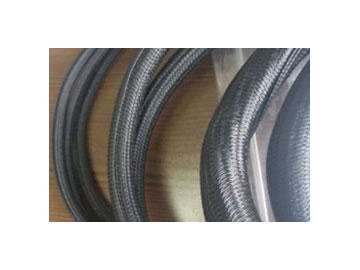

Split self-closing braided sleeving is produced using polyester mono and multifilament. The material offers excellent wear resistance, heat radiating performance, and is easy to install and remove. The sleeving covers and protects electrical wires. Sleeving is applied in electrical cables, electronics cables, railway applications, and telecoms products.

Parameters (mm)

Model	Inner Diameter(I)	Maximum Harness Diameter	Overlap	Package	Expanded Width
PT-003	3	4	25％	100m/ reel	20-22
PT-005	5	6	25％	100m/ reel	24-26
PT-008	8	9	25％	100m/ reel	32-36
PT-010	10	11	25％	100m/ reel	38-42
PT-013	13	14	25％	50m/ reel	50-55
PT-016	16	17	25％	50m/ reel	60-70
PT-019	19	20	25％	25m/ reel	85-95
PT-025	25	27	25％	25m/ reel	105-115
PT-030	30	32	25％	25m/ reel	117-132
PT-038	38	40	25％	25m/ reel	150-168
PT-050	50	52	25％	25m/ reel	195~220
