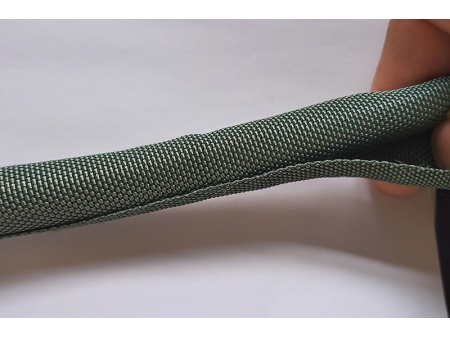

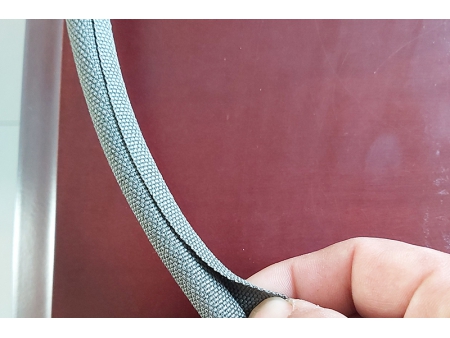

Nomex Self-closing Braided Sleeving

Nomex Self-closing Braided Sleeving
Nomex Self-closing Braided Sleeving
Nomex Self-closing Braided Sleeving
Request a Quote

Material: Nomex® fiber PEEK
Working temperature: -196℃~ 350℃
Melting point: No melt point, carbonization at 370℃.
Color: Natural white, Army green
Cutting tool: Scissor
Other feature: Resistant to most alkalis and acids.
Approval: RoHS

Nomex self-closing braided sleeving is made using Nomex fiber and PEEK mono-filament, which features an outstanding heat resistance and high strength. This braided wrap will work normally at temperatures up to 250℃ for long periods of time. Our braided wrap sleeving features a higher mechanical toughness, self-extinguishing, acid resistance, oil and alkali resistance, and lower density. It is primarily used to protect hoses, antennas, and cable harnesses against high temperature, flame or mechanical abrasion. This wire harness protection product is also resistant to GAMMA and X-RAYS, and is known for its excellent wear resistance, oil and waterproof performance, moisture resistance and flow material impermeability.
We can provide waterproof and non-waterproof products upon request.

Specification
Model Inner diameter(d) Edge overlap (%) Coverage diameter Package(L)
SNX-006 6mm 25%~50% 6mm 100m/reel
SNX-008 8mm 8mm 100m/reel
SNX-010 10mm 10mm 100m/reel
SNX-013 13mm 13mm 100m/reel
SNX-016 16mm 16mm 50m/reel
SNX-019 19mm 19mm 50m/reel
SNX-025 25mm 25mm 50m/reel
SNX-032 32mm 32mm 25m/reel
SNX-038 38mm 38mm 25m/reel
SNX-045 45mm 45mm 25m/reel
SNX-050 50mm 50mm 25m/reel
