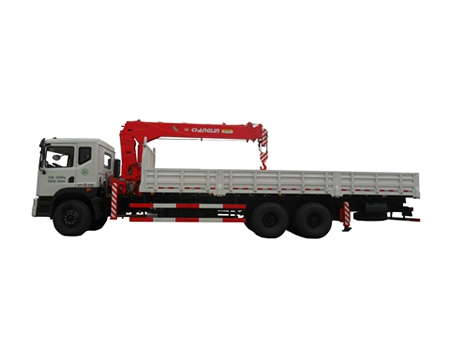

SQ6.3Z3Q Truck Mounted Crane (Straight Boom Crane)
Request a Quote
- This SQ6Z3Q truck mounted crane is a folding boom crane with three-point axles.
- Worm gear reducer enables our lifting equipment to rotate 360°.
- The truck mounted crane adopts manual horizontal outriggers with full span of 5m.
- Designed with hexagon sections and constructed with two welding joints, our material handling device has excellent lateral stability.
Consulting Products Information
- Its folding boom endows this heavy engineering machinery with a wider working range not at the expense of the available area of the cargo compartment.
- The external telescopic oil cylinder of our truck mounted crane is of reliable performance and is space saving.
- Moment limiter is optional to be configured to our folding boom hoist to provide a safer working environment for the operator.
Technical Parameters of Truck Mounted Crane:
Order | Item | Unit | Parameter |
1 | Maximum load moment | kN·m | 138 |
2 | Maximum lifting load | kg | 6300 |
3 | Maximum working height | mm | 10100 |
4 | Boom length (fully retracted) | mm | 2500 |
6 | Maximum lifting height (from the ground) | mm | About 12800 |
7 | Maximum elevation angle of boom | (°) | 67 |
8 | Minimum elevation angle of boom | (°) | -53 |
9 | Lateral span of the front outrigger | mm | 2200~5240 |
10 | Rotation speed | r/min | ≤2 |
11 | Rotation angle | ° | 360° full rotation |
12 | Crane weight | kg | 2400 |
13 | Fuel pump | ------------- | Plunger pump |
14 | Fuel tank capacity | L | 100 |
15 | Working pressure of hydraulic system | MPa | 28 |
16 | Flow of hydraulic system | L/min | 25 |
Welcome to choose SINOMACH construction machinery (engineering vehicle/construction equipment).
Besides the SQ6.3Z3Q model truck mounted crane, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.
