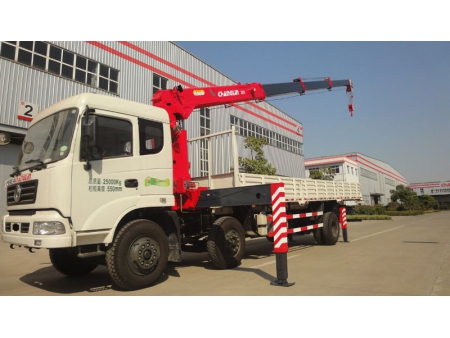

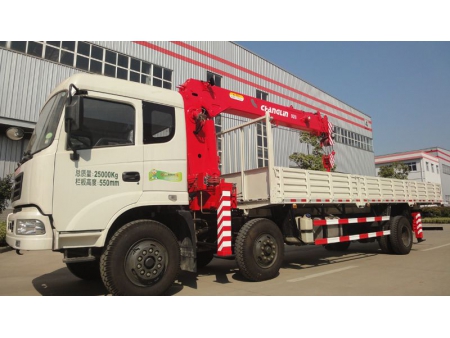

  • As a straight boom crane, our SQ10 truck mounted crane adopts planetary reducer to guarantee stable 360°rotation.

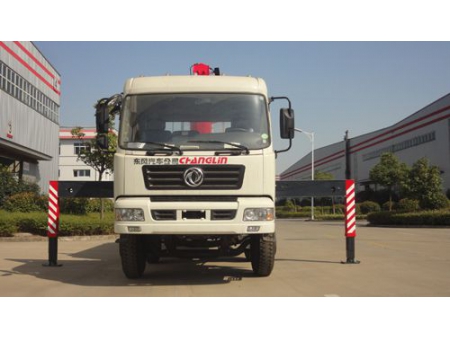

  • The front outrigger of the truck crane is designed with a longer span which is 5.56m maximum.

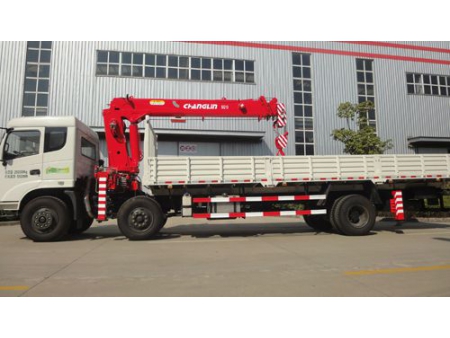

  • As for standard configuration of our heavy machinery, the rear outrigger is fixed outrigger. You can also select hydraulic rear outrigger to increase the stability of the truck mounted crane and improve its adaptability to complex working conditions.
Consulting Products Information

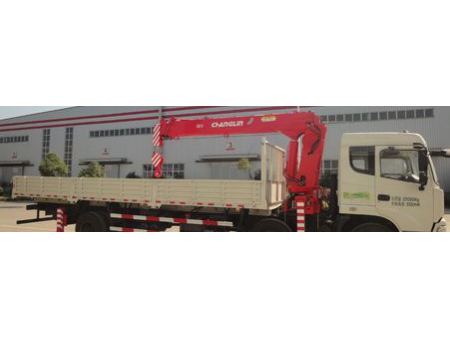

  • Hexagon sections give good lateral stability to the hoisting machinery.
  • Controlled by the main control valves, our truck mounted crane supports both-side manipulation.
  • The outriggers are controlled by separate valves. Improper operation will be avoided thanks to the employment of selector valves.
  • Height limit switch, over winding alarm device and high power LED light come as standard configurations of our truck mounted crane.
  • Moment limiter can be fitted to this heavy engineering machinery optionally to create a safer working environment for the operators.
Technical Parameters of Truck Mounted Crane:
Order Item Unit Parameter
1 Maximum load moment kN·m 250
2 Maximum lifting load kg 10000
3 Maximum working height mm 13300
4 Boom length (fully retracted) mm 4360
5 Maximum lifting height (from the ground) mm About 16600
6 Lifting ratio   6/4
7 Maximum elevation angle of boom (°) 75
8 Minimum elevation angle of boom (°) 0
9 Lateral span of the front outrigger mm 2114~5560
10 Lateral span of the rear outrigger mm 2200
11 Maximum lifting speed Main hook (single rope) Lifting m/min 60
Lowering 60
12 Rotation speed r/min ≤2.5
13 Rotation angle ° 360° full rotation
14 Crane weight kg 4036 (including rear outrigger)
15 Fuel pump ------------- Gear pump
16 Fuel tank capacity L 170
17 Working pressure of hydraulic system MPa 23
18 Flow of hydraulic system L/min 80

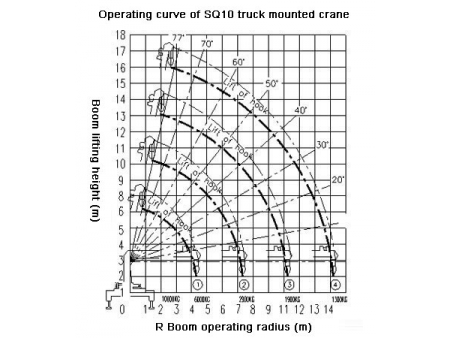

Lifting Performance of Truck Mounted Crane:
Load (kg)
Range (m)
Load weight (kg)
One-section boom Two-section boom Three-section boom Four-section boom
2.5 *10000 6700 5000 4400
3.0 *8400 6500 5350 4200
3.5 7300 6000 5200 4000
4.0 6500 5400 4800 3950
5 6000 (4.4) 4500 4000 3200
6   3800 3500 2900
7   3400 3000 2500
8   2900 (7.4) 2600 2300
9     2400 2200
10     2100 2000
11     1900 (10.4) 1700
12       1400
13       1300 (13.3)
14
16
Lifting ratio The lifting ratio is 6 for the items marked with * and is 4 for the other items.
Notes:
  • Rated lifting weight includes the weight of hook (108kg) and other lifting accessories. The outrigger must stand on flat and solid ground.
  • The actual lifting weight is dependent on the actual working radius.
  • When the boom length is over 6m, the outrigger must fully stretch out.
  • Parameters in the above table do not allow for boom deflection.

Welcome to choose SINOMACH construction machinery (engineering vehicle/construction equipment).
