Dust Collector Bag Cage Welding Machine

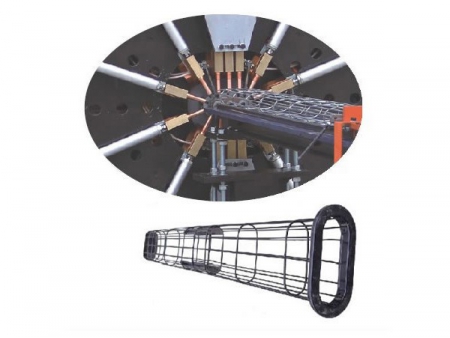

As the name implies, the dust collector bag cage welding machine is particularly offered for manufacturing bag cage for dust collector. The welding machinery is quite popular home and abroad because of the stable performance.

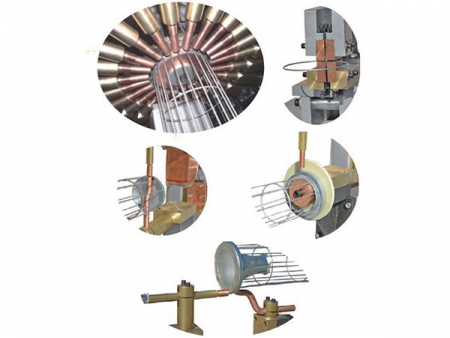

In addition to the dust collector bag cage welder, the bag cage manufacturer also need the following machines for production, including round ring bending machine, round ring butt welding machine, spot-welder for top cap of dust collector bag cage, spot-welder for ring welding, spot-welder for bottom cap welding, spot-welder for Venturi tube welding.
Technical Data
- Cage diameter100-160mm or 100-200mm
- Cage length7.5m (or customized)
- Applicable wire diameter2-6mm (or customized)
- Quantity of longitudinal wire8, 10, 12, 16, 20, 24 (14, 18, 22 optional)
- Space between ringsNo limited
- Welding transformer80kVA×2
- Rated input power380V, 3-phase, 50/60Hz
- Rated duty cycle50%
- One-time welding currentMax. 500A (one-time welding), 254A (two-time welding), based on quantity of longitudinal wires
- Cooling methodAir cooling
- Compressed air consumptionAbout 0.3m3/min
- Air pressure0.7MPa
- Dimension of main machineAbout 1200×1500×1500mm
- Weight of main machineAbout 1000kg
