3STKD Valve Manifold
Request a Quote
- Valve manifolds use electromagnetic direct-drive spool valves, ensuring low-pressure loss and high efficiency in fluid control
- The spool valve functions can be tailored to meet the precise needs of different applications, providing flexibility and precision
- With its compact structure and small footprint, the manifold is designed for easy installation and optimal piping arrangement, enhancing the overall layout of the machinery's hydraulic system
Applications
- Agricultural machinery
- Cranes
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 60 |
| Pressure loss (MPa) | ≤0.8 |
| Working voltage of solenoid valve (V) | 12(DC) |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 3.55 |

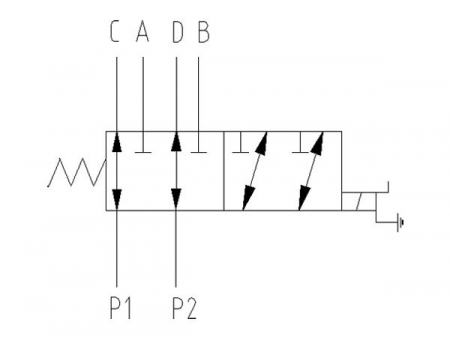

Hydraulic System Schematic Diagram

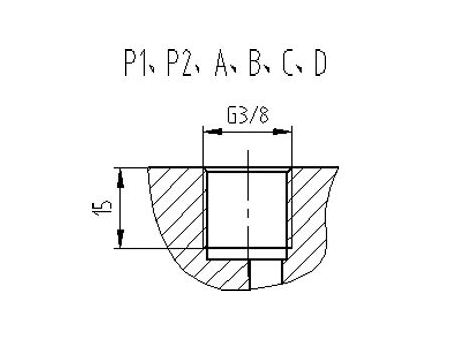

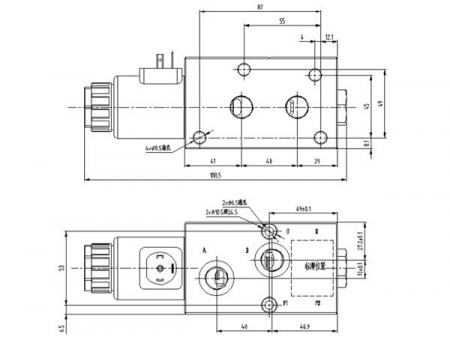

External Connection Dimensions
