Cushion Valve HCF

Request a Quote

View All: http://controlvalvemaker.com/3-12-cushion-valve-hcf.html

Cushion valves minimize pressure surges, protecting the system from potential damage and ensuring a longer lifespan
The valve core's quick activation facilitates a smooth and steady control experience, making operations more predictable and comfortable
Its small size and streamlined structure allow easy installation and maintenance, fitting seamlessly into various machinery without compromising space

Applications

Parameters

Rated pressure (MPa)	25
Rated flow (L/min)	75
Opening pressure of overflow valve (bar)	12.2
Hydraulic oil	Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃)	－20～100
Viscosity range (mm2/s)	10～380
Fluid cleanliness	Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10
Weight (kg)	3.75

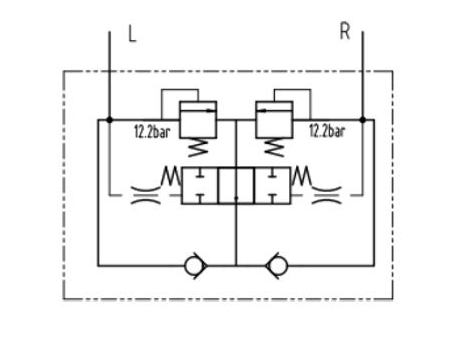

Hydraulic System Schematic Diagram

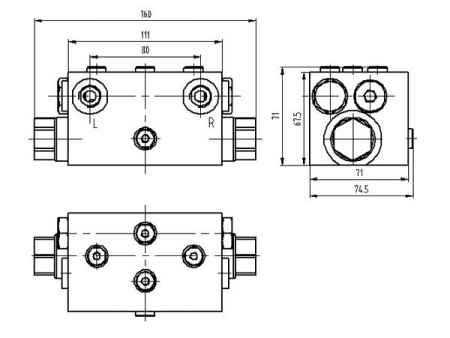

External Connection Dimensions

Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components

Annual production capacity of 250,000 sets of hydraulic components

Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
