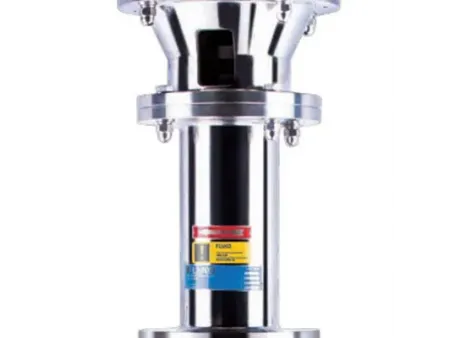

The cage agitator is a high-speed agitator that features outer rotor with long-slotted guide chambers and a specially designed impeller. This configuration ensures high fluid throughput while creating powerful macro mixing and localized fine dispersion within the container. The agitator delivers excellent dispersion, emulsification, and homogenization for materials with viscosities of up to 30,000 cP (Newtonian fluids) and 300,000 cP (non-Newtonian fluids).

Applications
The cage agitator is easy to install, simple to operate, and versatile in its range of uses. It is ideal for powder-liquid mixing processes with high solid content, such as the dispersion, homogenization, and shearing emulsification of pectin, soy protein, and starch powders.

The double axial flow agitator features highly efficient axial flow blades. Designed with precision, its airfoil blades generate a concentrated axial flow, significantly improving the material's flow characteristics and enhancing overall mixing efficiency. This agitator effectively reduces power consumption, ensuring optimal performance and energy savings, even under constantly changing process conditions.

Specifications

• Motor: Normal motor/explosion-proof motor
• Speed: Constant speed/frequency speed control
• Applicable density (kg/m³): 500-1500
• Applicable viscosity (cP): 1-2000cP
• Vessel volume (m³): 5-50
• Working pressure (Mpa): -0.03 to 0.5
• Working temperature (℃): -10 to 200
• Configurations
  Material: depending on process requirements (temperature, pressure, corrosion)
  Seal: water seal, oil seal, packing seal, single mechanical seal, double mechanical seal
  Finish: mechanical polishing, electropolishing Non metallic media contact parts with FDA approval (optional)

The double-cone vortex mixer is non-blade mixing equipment that uses two conical shapes to create a vortex pressure differential. The internal rotor aids in shearing and dispersing materials, making it effective for mixing solutions with hard-to-dissolve particles and powders.

Specifications

• Motor: Normal motor/explosion-proof motor
• Speed: Constant speed/frequency speed control
• Applicable density (kg/m³): 800-1200
• Applicable viscosity (cP): 1-2000
• Vessel volume (m³): 1-10
• Working pressure (Mpa): -0.03 to 0.5
• Working temperature (℃): -10 to 200
• Configurations
  Material: depending on process requirements (temperature, pressure, corrosion)
  Seal: oil seal, double mechanical seal
  Finish: mechanical polishing, electropolishing

The counter-rotating agitator is a dual-action mixer that features a central and outer agitator, each operating at independent speeds to perform complementary functions. The central agitator rotates at higher speeds and is optimized for dispersion while the outer agitator is connected to an anchor with scrapers to homogenize and remove the product from the tank walls eliminating dead zones and effectively addressing issues like material buildup on the container walls, clumping, and sedimentation in viscous materials. The system produces opposing flows that crosses inside the tank to ensure that every material is thoroughly broken down and evenly distributed throughout the mixture.

Applications
This agitator is ideal for mixing medium to high-viscosity materials, ensuring efficient dissolution, dispersion, reaction, emulsification, and aggregation processes. Its unique dual-action mixing mechanism makes it suitable for complex mixing tasks in industries such as personal care, pharmaceuticals, and fine chemicals, where precision and thorough mixing are essential for product quality and consistency.

Specifications

• Motor: Normal motor/explosion-proof motor
• Speed: Constant speed/frequency speed control
• Applicable density (kg/m³): 800-1500
• Applicable viscosity (cP): 1-100000
• Vessel volume (m³): 0.1-10
• Working pressure (Mpa): -0.03 to 0.5
• Working temperature (℃): 0 to 200
• Configurations
  Material: depending on process requirements (temperature, pressure, corrosion)
  Seal: oil seal, packing seal, single mechanical seal
  Finish: mechanical polishing, electropolishing Non metallic media contact parts with FDA approval (optional)

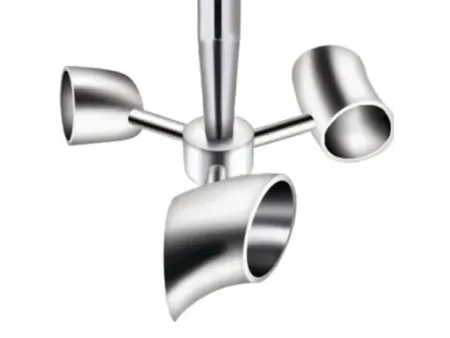

The curved blade turbine impeller produces radial-flow with less shear and power consumption. It is known for its strong discharge capabilities, combining both shear force and circulation power. When installed in a vessel with baffles, the impeller creates two distinct circulation loops, one above and one below the blades, leading to a high flow output.

Applications
This impeller is suitable for high shear mixing and dispersing, particularly used for solid-liquid suspension. It is also ideal for other mixing processes such as, blending, gas absorption, and crystallization.

Specifications

• Motor: Normal motor/explosion-proof motor
• Speed: Constant speed/frequency speed control
• Applicable density (kg/m³): 500-1500
• Applicable viscosity (cP): 1-100
• Vessel volume (m³): 1-50
• Working pressure (Mpa): -0.03 to 2
• Working temperature (℃): -10 to 200
• Configurations
  Material: depending on process requirements (temperature, pressure, corrosion)
  Seal: water seal, oil seal, packing seal, single mechanical seal, double mechanical seal
  Finish: mechanical polishing, electropolishing
