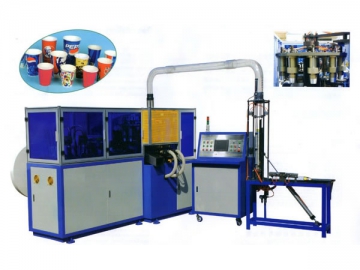

Paper Cup Forming Machine
Request a Quote
View All: http://printingmachinecn.com
Descriptions of Paper Cup Forming Machine
1. JBZ-S Paper Cup Forming Machine is an automatic machine with multi-working station.
2. It produces two-side film-coated paper cup through the procedure of automatic paper feeding, ultrasonic welding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge.
3. The sealing system is ultrasonic sealer, so this model is suitable for making two-side PE coated paper with full printing design cups.
4. Produced cups can for both hot and cold drinking, such as soft drinking, ice-cream and coffee etc.
| Model | JBZ-S12 | JBZ-S16 | JBZ-S22 |
| Specification of paper cup | 6oz, 8oz, 12oz | 12oz, 14oz, 16oz | 16oz, 22oz |
| Paper material | Single-side, double-side PE coated paper | ||
| Outer diameter of cup rim | 50-95 | 50-95 | 50-95 |
| Outer diameter of cup bottom | 35-70 | 35-70 | 35-70 |
| Cup height | 50-120 | 100-150 | 100-175 |
| Bottom depth | ≤10 | ≤10 | ≤12 |
| Taper angle | 2-8° | 2-8° | 2-8° |
| Productivity | 40-50pcs/min | 35-45pcs/min | 30-40pcs/min |
| Power supply | 380V 50Hz | ||
| Total power | 6.5kW | 8kW | |
| Weight | 1600kg | 1700kg | 1900kg |
| Packing size(L×W×H) (mm) | 2800×1350×1800 800×750×1300 | 3000×1450×1900 800×750×1350 | 3300×1450×2000 800×750×1350 |
| Air Pressure | 0.2m3/min, 0.6MPa (provided by customer) | ||
