ZDF Spur Gear Planetary Gearbox
Request a Quote

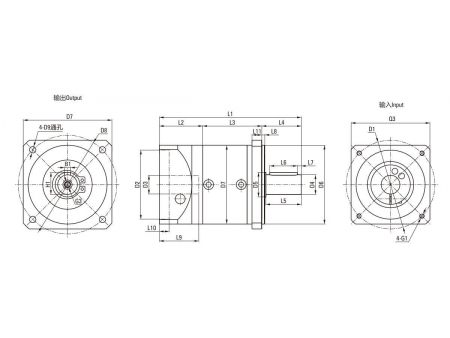

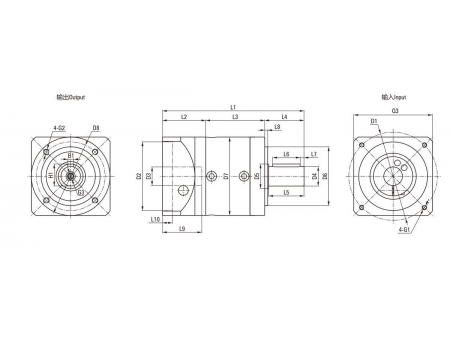

Specifications
Unit: mm
| Model | | | | | | |||||||||
| Number of Stage | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 |
| Overall Length L1 | 93.5 | 106.5 | 119 | 114 | 127 | 140 | 144 | 162 | 179.5 | 195.2 | 223 | 250.5 | 302 | 345.5 |
| Body Length L3 | 39 | 52 | 64.5 | 46.5 | 59.5 | 72.5 | 60 | 78 | 95.5 | 73.7 | 101.5 | 129 | 116 | 159.5 |
| Output | ||||||||||||||
| Shaft Length from Output L4 | 26 | 35 | 40 | 55 | 87 | |||||||||
| Shaft Length from Spigot L5 | 23 | 30.5 | 36 | 50 | 80 | |||||||||
| Key Length L6 | 16 | 25 | 28 | 40 | 70 | |||||||||
| Distance from Shaft End L7 | 3.5 | 2.5 | 4 | 5 | 5 | |||||||||
| Spigot Length L8 | 2 | 3 | 3 | 4 | 5 | |||||||||
| Input | ||||||||||||||
| Motor Flange Length L2 | 28.5 | 32 | 44 | 66.5 | 99 | |||||||||
| Motor Shaft Length L9 | 26 | 30 | 40 | 58 | 79 | |||||||||
| Motor Location Depth L10 | 6 | 10 | 10 | 10 | 10 | |||||||||
