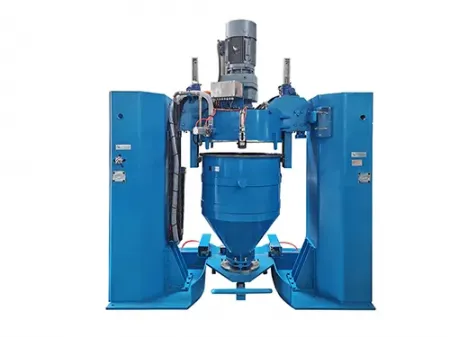

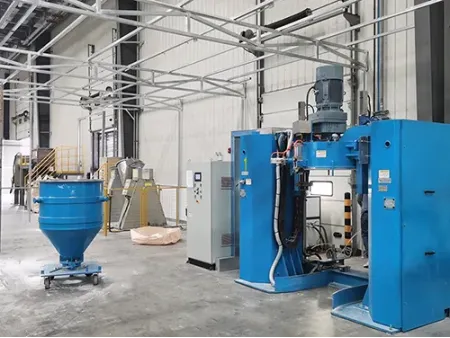

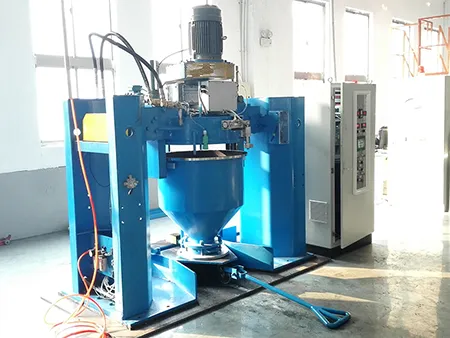

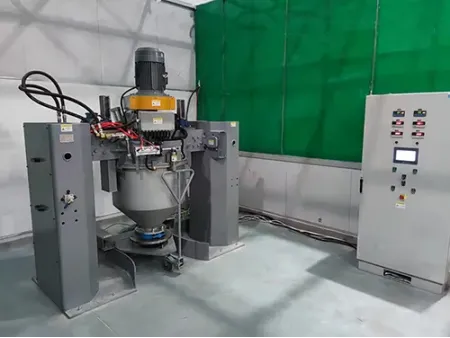

Container Mixer

Request a Quote

View All: http://plastic-process.com/7-1-container-mixer.html

Applications
The high efficiency bulk material mixer is suitable for the mixing various fine powders and granular materials in plastics, chemical raw materials and refractories.

Operational Principle
As the tank with the mixing head turns, material is rotated inside the agitator in order to produce a centrifugal movement conducive to mixing. After the mixing process is complete, the hopper will automatically return to its original station. The entire work cycle is PLC controlled.

Parameter

Model	PSM-150W	PSM-300W	PSM-400W	PSM-600W	PSM-1000W
Mixing Power	7.5kW	15kW	18.5kW	18.5kW	30kW
Tilt Motor Power	0.25kW	0.55kW	0.55kW	1.1kW	1.5kW
Total Mixing Volume	150L	300L	400L	600L	1000L
Effective Mixing Volume	20-80%	20-80%	20-80%	20-80%	20-80%

Features

The high efficiency bulk material mixer uses a movable charging bucket and mixing station for mixing.
The mixed dispersion is uniform and the production efficiency is high.
It is easy to change the materials and clean the equipment.
According to the production line requirements for production output, we can design a multi-bucket parallel operation, and a mixer can meet the simultaneous mixing requirements for multiple production lines.

Tags
powder mixer, granule mixer, blending machine
