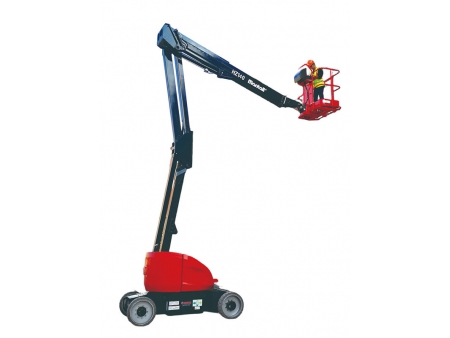

Self-Propelled Articulated Boom Lift, HZ120/HZ140/HZ140J
Mantall HZ120/HZ140/HZ140J self-propelled articulated boom lifts are built to accommodate working heights up to 14 meters. The articulated boom that has multiple joints which allow for multi-directional precise positioning and lifting operations, enabling the worker to access hard-to-reach places and avoid obstructions. The self-propelled articulated boom lift can assist worker to do jobs with ease due to the 360-degree rotating turntable and working platform that can move up and down, left and right swinging motion. These self-propelled articulated boom lifts are well suited for indoor applications and can protect flooring because they are equipped with ultra-quiet non-marking tires. They use fully proportional Hall effect joystick and CAN intelligent control system, which makes it easier to maintain and upgrade while allowing operator to achieve multiple actions simultaneously.
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
- Platform swing gate
- Platform alternate leverage
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
| Models | HZ120 | HZ140/HZ140J | HZ160/HZ160J | HZ200J |
| Max. working height m | 12m | 14m | 16m | 20m |
| Max. platform height m | 10m | 12m | 14m | 18m |
| Max. outreach m | 6m | 7.04/7.259m | 8.22m/8.32m | 11m |
| Max. up and over clearance | 4.2m | 6.33m | 6.92m/7.47m | 7.71m |
| Max. lift capacity KG | 200kg | 230kg | 230kg | 230kg |
| Platform size B*C*A | 1.16m×0.65m×1.1m | 1.5m×0.76m×1.1m | 1.5m×0.76m×1.1m | 1.8m×0.76m×1.1m |
| Height-stowed D | 1.96m | 2.00m | 2.00m | 2.5m |
| Length-stowed E | 4.2m | 5.36/6.17 | 5.88m/6.47m | 7.8m |
| Width F | 1.5m | 1.75m | 1.75m | 2.5m |
| Wheelbase G | 1.96m | 2.00m | 2.00m | 2.5m |
| Ground clearance H | 0.18m | 0.14m | 0.14m | 0.3m |
| Turntable rotation | 360°discontinuously | 360°discontinuously | 360° discontinuously | 360° discontinuously |
| Turntable tailswing | 0 | 0 | 0 | 0.58 |
| Platform rotation | / | 180° | 180° | 180° |
| Jib swing | / | 0/140°(HZ140J only) | 0/140°(HZ160J only) | 0/135° |
| Platform level | Hydraulic leveling | Hydraulic leveling | Hydraulic level | Hydraulic level |
| Drive speed, stowed | 4.0km/h | 3.7km/h | 4.8km/h | 4.0km/h |
| Drive speed, extended | 1.0km/h | 1.0km/h | 1.0km/h | 1.0km/h |
| Gradeability | 25% | 30% | 30% | 45% |
| Max. tilt angle | 3° | 3° | 3° | 3° |
| Max. lateral force N | 400N | 400N | 400N | 400N |
| Max. wind speed allowed | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s |
| Min. turning radius-(inside) | 1.9m | 2.3m | 1.1m | 2.51m |
| Min. turning radius-(outside) | 4.2m | 3.5m | 3.50m | 5.69m |
| Drive wheels number | 2 | 2 | 2 | 2 |
| Steering wheel number | 2 | 2 | 2 | 2 |
| Controls | Electrical hydraulic proportional control | |||
| System voltage | DC24V | DC24V | DC24V | DC24V |
| Hydraulic tank capacity | 32L | 35L | 35L | 68L |
| Tire size | 22*7*16 | 600*190 | 600*190 | 355/55D-625 |
| Power | DC48V/225Ah | DC48V/320Ah | DC48V/320Ah | DC48V/420Ah |
| Total weight | 4.0T | 5.6T/6.34T | 6.49T/6.64T | 6T |
