Mini Self-Propelled Electric Scissor Lift Manufacturer

Mini Self-Propelled Electric Scissor Lift

Request a Quote

View All: http://aerialwork-platform.com/1-1-3-mini-self-propelled-electric-scissor-lift.html

FSJY Aerial Work Platform

Mobile elevating work platform with 300kg capacity, up to 6800mm working height

The mini self-propelled electric scissor lift consists of six key components: a lifting platform, scissor lift arms, lift cylinders, hydraulic control system, base frame, and driving system. Compact and versatile, this lift is ideal for operations in narrow spaces, such as:

Installing and maintaining indoor lighting fixtures
Ventilation system installation
Maintenance of fire safety pipelines
Accessing and storing items in warehouse shelving systems

300kg
6800mm

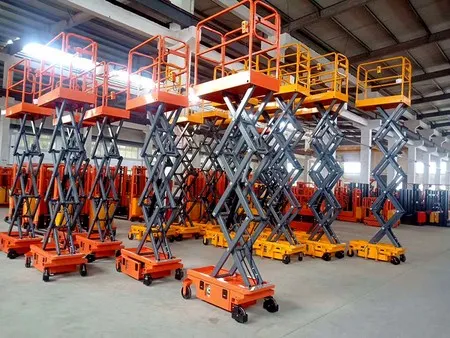

Photo Gallery

Specifications

Model Number	Unit	FSJY3	FSJY3.9	FSJY4.8
Rated Lift Capacity	kg	300	300	300
Max. Working Height	mm	5000	5900	6800
Max. Platform Height	mm	3000	3900	4800
Overall Length	mm	1300	1300	1300
Overall Width	mm	760	760	760
Overall Height	mm	1880	1980	2040
Platform Size	mm	1170×600	1170×600	1170×600
Ground Clearance	mm	60	60	60
Wheel Base	mm	990	990	990
Min. Turning Radius	mm	1200	1200	1200
Driving Motor	V/kW	2×24/0.4	2×24/0.4	2×24/0.4
Lifting Motor	V/kW	24/0.8	24/0.8	24/0.8
Drive Speed (Platform Stowed)	km/h	4	4	4
Drive Speed (Platform Elevated)	km/h	0.8	0.8	0.8
Lifting/Lowering Speed	sec	20/30	20/30	20/30
Battery	V/Ah	2×12/80	2×12/80	2×12/80
Charger	V/A	24/10	24/10	24/10
Max. Gradeability	%	10-15	10-15	10-15
Max. Safe Working Angle	°	2°	2°	2°
Driving Wheel	mm	Ø230×80	Ø230×80	Ø230×80
Front Wheel	mm	Ø150×60	Ø150×60	Ø150×60
Overall Net Weight	kg	490	600	760

Features

Simple controls, excellent stability, and high safety performance with no operational shocks
Uses a compact, flexible controller from the renowned American brand Curtis for precise maneuverability
Features button-style switches, offering greater reliability compared to touch switches
Designed with a higher safety and stability factor than similar products, ensuring a longer equipment lifespan

Main Options

Standard Features

Emergency lowering system
Battery charging protection
Emergency stop button
Hour meter
Full-range mobility
Battery indicator
Maintenance-free battery

Optional Features

Lithium battery
Platform extension
Folding guardrails

Detail Features

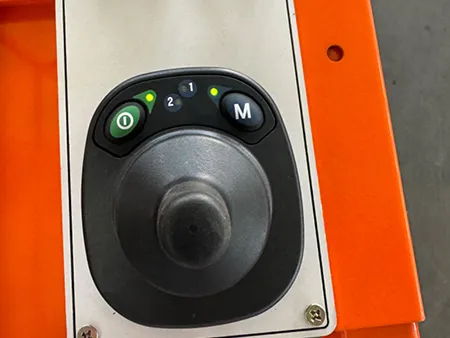

Button-style control handle, offering simple and comfortable operation

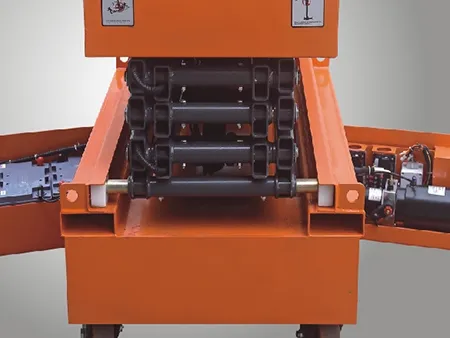

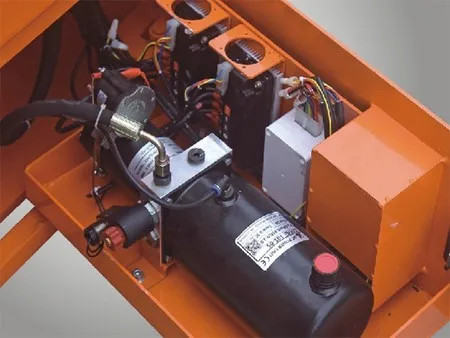

Side compartments housing components such as batteries, charger, and pump unit, ensuring easy use and daily maintenance

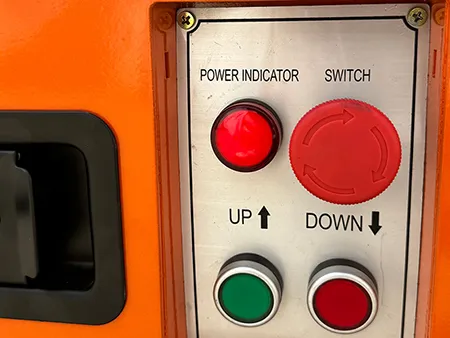

Control panel
