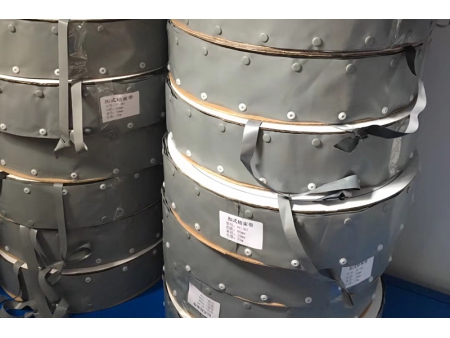

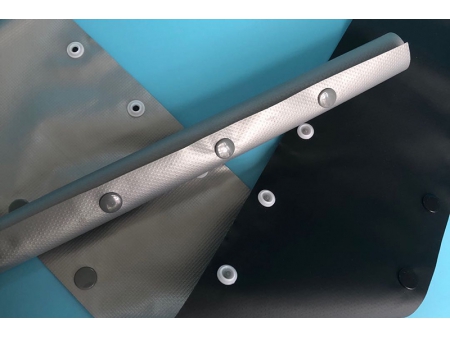

PVC Button Wrap

Request a Quote

Website: http://sleeving-product.com/7-2-pvc-button-wrap.html

• Material: PVC POM
• Thickness: 0.35mm
• Color: Black Gray
• Application: Cable protection
• Function: bundle and protect wires, conveniently installed and uninstalled, reusable Working temperature: -15℃~ 60℃
• Tear strength: widthwise: 65.7N, longitudinal: 56.3N
• Tensile strength: widthwise: 727N, longitudinal: 921N
• Extensibility: widthwise: 22%, longitudinal: 20%
• Voltage Test: 1-second 6kV voltage, no flashover or breakdown

Now

Specification

Model	Width(mm)	Bundle diameter(mm)	Length
SC-010	57	10	50m
SC-015	75	15	50m
SC-020	90	20	50m
SC-025	100	25	50m
SC-030	115	30	50m
SC-040	146	40	50m
SC-050	175	50	50m
SC-070	241	70	50m
SC-100	333	100	50m

Related
PVC Button Wrap, Cable Wrap
