Silicone Aglet Cutting Machine

Silicone Aglet Cutting Machine
Silicone Aglet Cutting Machine
Request a Quote

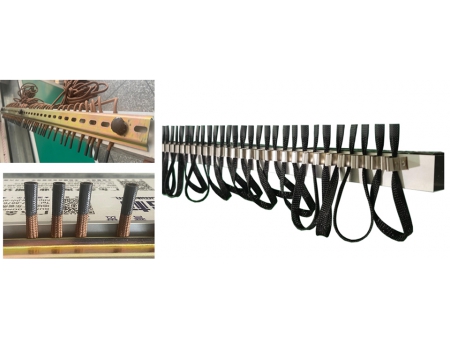

Silicone aglet cutting machine is mainly used for cutting silicone or water-based pu tips on cords or webbing.

Features
  • Features a brush system to smooth rope ends before cutting and automatically collects cutting waste.
  • Equipped with single-line laser positioning for fast and precise cutting.
  • Delivers high-speed operation with clean cutting edges.
  • Safety grating protection system automatically stops the machine if intrusion into the operating area is detected; operation resumes after restart.
Parameters
Model CT-Q890DS
Dimensions 1350 (L) × 760 (W) × 1500 (H) mm
Max. cutting length 890 mm
Drive mode Electric & pneumatic
Air pressure 0.5–0.7 MPa
Total power 2 kW
Power supply 220V / 50Hz
Net weight 240 kg
