Powder Concentrator

Request a Quote

View All: http://ntozonegenerator.com/3-oxygen-concentrator/227501/index.html

Application
The powder concentrator is used to separate qualified powder, and return unqualified powder back to the grinding mill for further grinding. This avoids any buffers that result from powder in the mill adhering to the grinding body. The powder concentrator selects the final product in coordination with the powder grinder and ball grinding mill as well as sand-making production lines. It is widely used in the industries for cement, coal ash, ceramic sand and more.

Applicable materials
Limestone, calcite, coal ash, desulphurization of calcium carbide, kaolin, calcium carbonate, coal gangue, gypsum, slag powder, coal dust, bentonite clay, barite, talcum, refractory materials and ceramics can all be ground using the powder concentrator.

Parameters

Models	Speed of main shaft (r/min)	Production capacity(t/h)	Product fineness(screen residue of 80um square hole screen)(80um)	Main motor			Matched fan
Models	Speed of main shaft (r/min)	Production capacity(t/h)		Type	Power (kw)	Range of speed regulation (r/min)	Type	Motor speed (r/min)	Wind pressure (Pa)	Air volume (m3/h)	Motor power (kW)
KX500	190-380	16-20	8%-10%	YCTL225-4A	11	125-1250	KXJF-No8C	1680	2494	29668	30
KX600	150-350	21-28	8%-10%	YCTL225-4B	15	132-1320	KXJF-No10C	1200	2400	34996	37
KX700	130-320	35-46	8%-10%	YCTL225-4C	18.5	132-1320	KXJF-No12.5C	1000	2390	64188	55
KX800	120-280	55-65	8%-10%	YCTL280-4B	22	132-1320	KXJF-No14C	980	2546	86331	75
KX900	120-280	70-86	8%-10%	YCTL355-4A	37	132-1320	KXJF-No16B	800	2456	99493	90
KX1000	120-280	90-115	8%-10%	YCTL355-4B	55	132-1320	KXJF-No16B	900	2684	136430	110
KX1200	120-260	120-160	8%-10%	Y380M-4	75	120-1480	KXJF-No20B	680	2771	165164	160

(Please enter your desired product model)

Advantages

High quality picked powder: the powder concentrator is equipped with a new, highly efficient and low-resistance cyclone dust collector for an outstanding dust collection performance.
Long service life: all easily damaged parts are protected by new scale boards, making it easy to check and repair any parts. This also extends the service life of the main engine.
Vibration damping equipment: the vibration in the system is reduced to the lowest level by using a shock absorbing and dust resistant fan.
Excellent anti-caking fall: numerous devices that feature caking prevention processes, such as the polyurethane scraper blades are located on the inside of the equipment in order to ensure an excellent cake formation resistance.

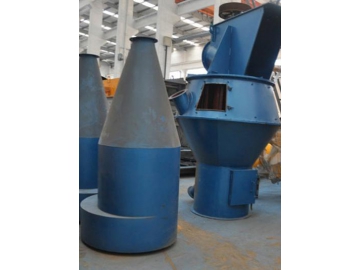

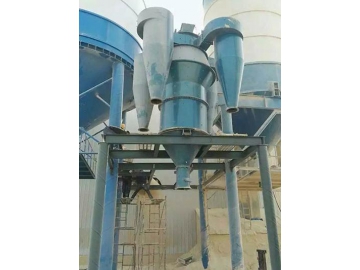

Other Picture
