Request a Quote

In recent years, PSA oxygen concentrators have been popular in veterinary anaesthesia and oxygen therapy, and they have become standard equipment in pet hospital. Oxygen concentrators have many features such as convenient movement, adjustable flowrate, continuous supply of high purity (93%±3%) oxygen, quiet and lightweight. It applies to oxygen inhalation in veterinary, nebulization therapy, ICU, anaesthesia treatment and oxygen chamber .

Technical Parameters
Model JAY-5KW JAY-10 JAY-10 20PSI
Flow Rate 0.5-5L/min 0.5-10L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07Mpa) 20 PSI (0.14Mpa)
Sound Level ≤40dB ≤50dB
Net Weight 15kg 27kg
Power Consumption ≤350W ≤880W
Input Frequency 50Hz ; 60Hz
Alarms Low oxygen concentration alarm 1. Power failure alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm

Technical Parameters
Model JAY-10-4.0 JAY-20-4.0
Flow Rate 1-10L/min 1-20L/min
Oxygen Purity 93% (±3%) 93% (±3%)
Outlet Pressure 20-60 PSI (0.14-0.4Mpa) 20-60 PSI (0.14-0.4Mpa)
Sound Level ≤ 50dB ≤ 60dB
Net Weight 90kg 118kg
Power Consumption ≤ 1250W ≤ 2000W
Input Frequency 50Hz ; 60 Hz 50Hz ; 60 Hz
Input Voltage AC 230V±10%;
AC 110V ±10%
AC 230V±10%;
AC 110V ±10%
Alarms 1. Power failure alarm;
2. High and low pressure alarm;
3. Low oxygen concentration alarm:
When oxygen purity is > 82%, blue light illuminates;
When oxygen purity is < 82%, red light illuminates for indicating low purity;
Application
  • Oxygen therapy
    Animal wears an oxygen mask connected to an oxygen concentrator to inhale oxygen directly for treatment of respiratory diseases.
  • Nebulizer function
    Longfian oxygen concentrator can be equipped with nebulizer function for animals in nebulizer therapy. One device serves mutiple functions, which greatly facilitates the operation.

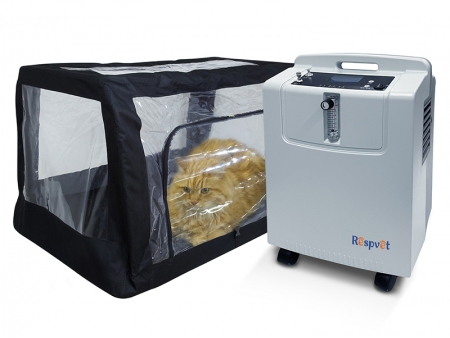

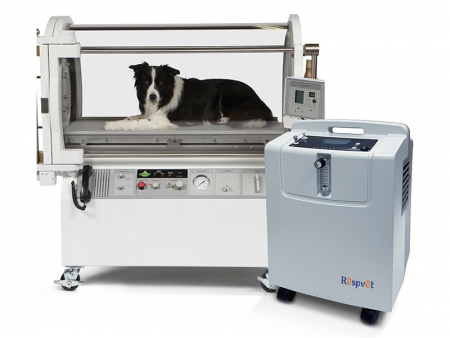

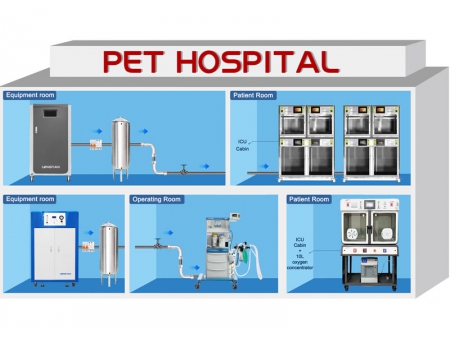

  • ICU and oxygen chamber
    The oxygen concentrator provides continuous oxygen source to ICU or oxygen chamber.
  • Anaesthesia
    Oxygen concentrator provides stable oxygen source for anaesthesia equipment in the progress of surgery.
